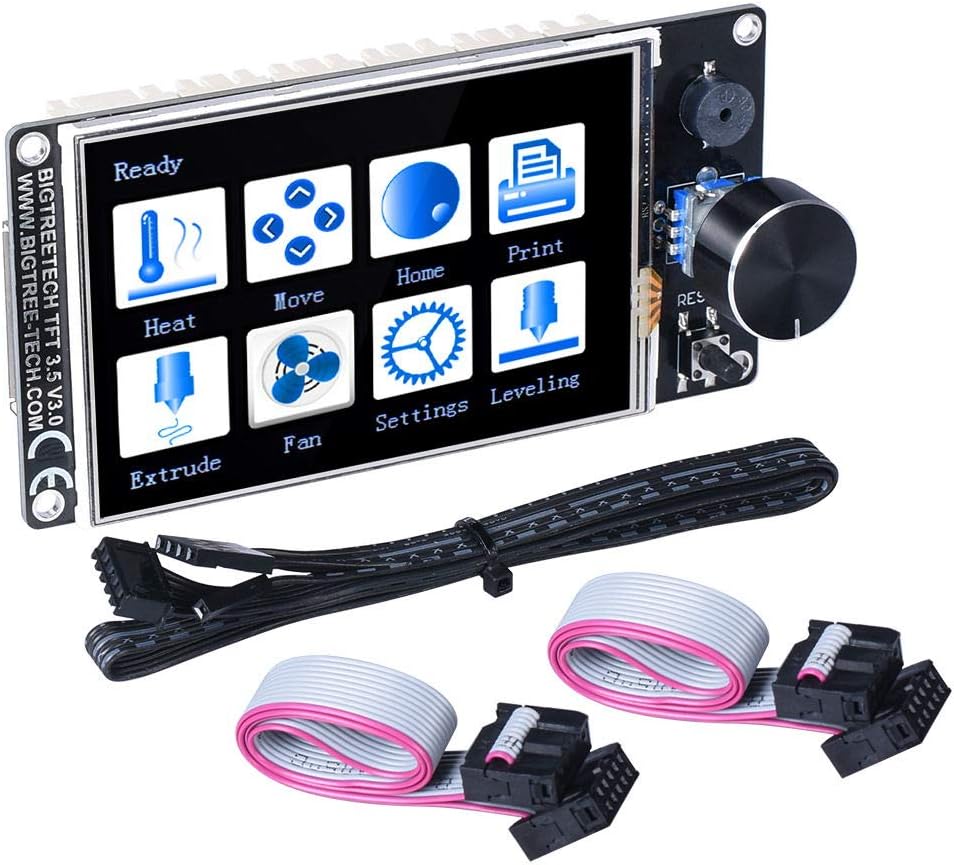

BIGTREETECH TFT35 V3.0.1 Smart Display Controller Board for 3D Printers SKR 2

BIGTREETECH TFT35 V3.0.1 Graphic Smart Display Controller Board

This BIGTREETECH TFT35 V3.0.1 is a graphic smart display controller board designed for 3D printers, offering enhanced compatibility and versatile operation modes. It features a powerful ARM Cortex-M3 series STM32F207VCT6 chip with a 32-bit CPU running at 120MHz.

Key Features

• Powerful Processor: ARM Cortex-M3 series STM32F207VCT6 chip with 120MHz 32-bit CPU.
• Flexible Power Input: DC5V power input.
• SD Card Compatibility: Supports 3.3V or 5V SD card logic voltage, offering higher compatibility with MEGA2560 motherboards.
• Dual Work Modes: Easily switch between LCD12864 mode and serial port screen mode with a single encoder press.
• Mode Switching: Press the encoder for approximately 3 seconds to access the mode selection page, then press again to confirm the selection.

Connection Modes

• LCD12864 Mode: Connect via EXP1, EXP2 (standard motherboard LCD ports) or EXP3 (used by SKR MINI E3 and SKR E3 DIP). Note: This mode does not have touch functionality.
• Serial Port Screen Mode: Connect via TFT or AUX-2 on the motherboard using RS232. Note: This mode supports touch functionality.

Compatibility

• Suitable for RepRap 3D printers.
• Compatible with SKR 2, Octopus V1.1, SKR E3 Turbo, SKR E3 RRF motherboards, and MEGA2560 motherboards.
