BIGTREETECH Manta E3 EZ 32Bit Silent Control Board Klipper CM4 CB1 EZ2209

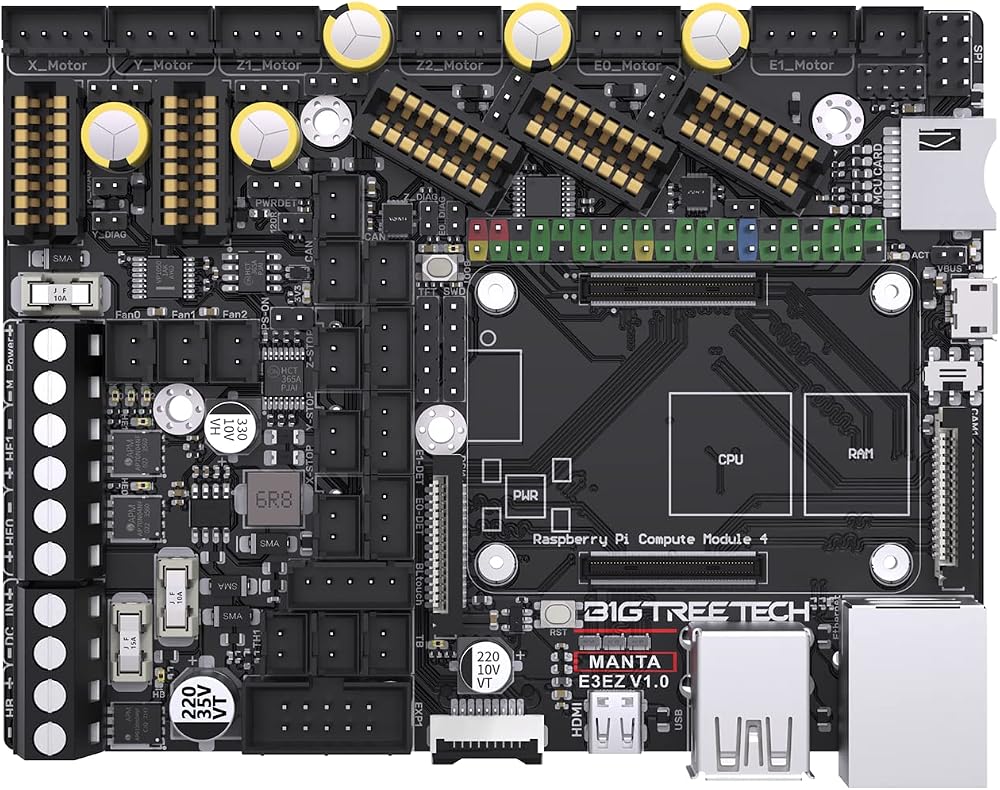

BIGTREETECH Manta E3 EZ Control Board

Upgrade your 3D printer with the BIGTREETECH Manta E3 EZ control board. This advanced 32-bit silent board is designed for Klipper firmware and offers powerful features for enhanced performance.

Key Features

• Master Chip: ARM Cortex-M0+ STM32G0B1RE at 64 MHz
• Motor Voltage: Maximum 56V, with insulation chip for high voltage protection
• Klipper Acceleration Compensation: SPI expansion interface for external acceleration sensors
• Power Supply: TPS5450-5A chip, supports DC12/24V input, up to 5A output (6A peak) for Raspberry Pi power
• Core Board Connection: BTB connection for compatibility with CM4 and other core boards like BIGTREETECH CB1
• Stepper Driver Compatibility: Supports EZ2209 stepper motor drivers
• Silent Operation: Advanced silent stepper drivers for quiet printing

Compatibility

Specifically designed for Ender-3 3D printers, and compatible with CM4/CB1 core boards and EZ2209 stepper motor drivers.
