Annadue NVMe PCIe Adapter M.2 SSD to PCIE X16 4 Port Expansion Card 4x32Gbps

Annadue PH44 NVMe PCIe Adapter

This Annadue PH44 adapter allows you to expand your system's storage by connecting multiple M.2 NVMe SSDs to your motherboard via a PCIe X16 slot. It supports high-speed data transfer with a 4x32Gbps transmission rate and features a soft RAID function for enhanced performance.

Key Features

• Brand: Annadue
• Model: PH44
• Interface: M.2 NVME SSD to PCI-E 4.0 X16 Adapter
• Ports: 4 Port Expansion Card
• Transmission Speed: 4x32Gbps
• Functionality: Soft Raid Card
• Indicator: LED Indicator
• SSD Support: M.2 NVME Protocol SSD, M.2 PCIE Device
• SSD Sizes Supported: 2230, 2242, 2260, 2280

Important Usage Notes

To ensure proper functionality, please note the following requirements:

• Motherboard Support: Your motherboard must support PCIe split function (e.g., PCIE X4X4X4 or 4X4 mode) and PCIe RAID function. Compatibility with HyperM.2X16 expansion cards is also beneficial. Different motherboards have varying PCIe split channel capabilities; consult your motherboard manual. If the system does not recognize all M.2 SSDs, try removing or replacing other PCIe devices (e.g., graphics cards, onboard NVME SSDs). Server motherboards and X299, X399 chipsets often have the necessary splitting capabilities.
• CPU Support: The CPU must possess sufficient PCIe channels. Lower-end CPUs may not have enough channels to support multiple M.2 SSDs. Refer to your CPU and motherboard specifications for compatibility.

Specifications

• Item Type: M.2 NVME SSD to PCIE X16 Adapter
• Material: PCB
• Model: PH44
• Support Hard Disk: M.2 NVME Protocol SSD, M.2 PCIE Device
• Transmission Speed: 4x32Gbps

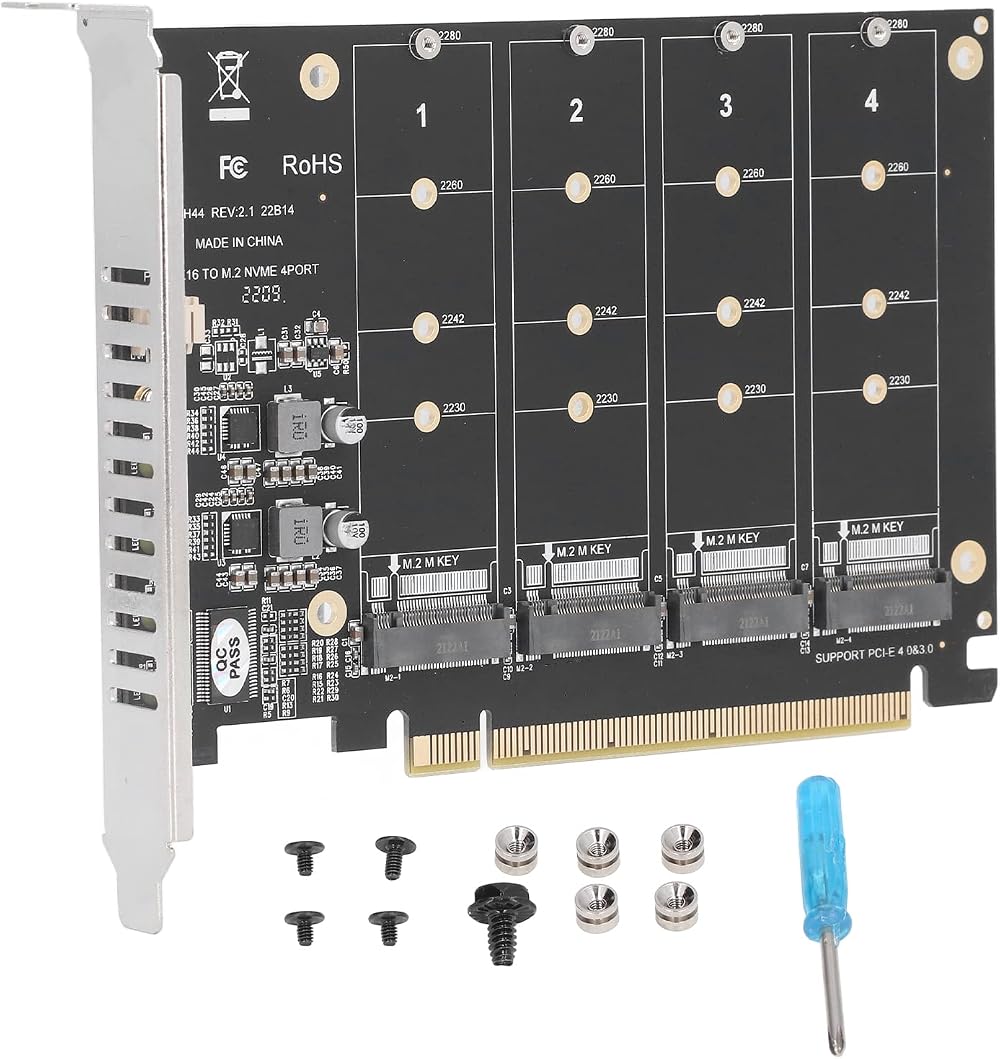

Package Contents

• 1 x Expansion Card
• 5 x Nuts
• 5 x Screws
• 1 x Screwdriver
