Yoidesu Dual M.2 NVMe SSD to PCIe X8 Adapter Card M Key Hard Drive Converter

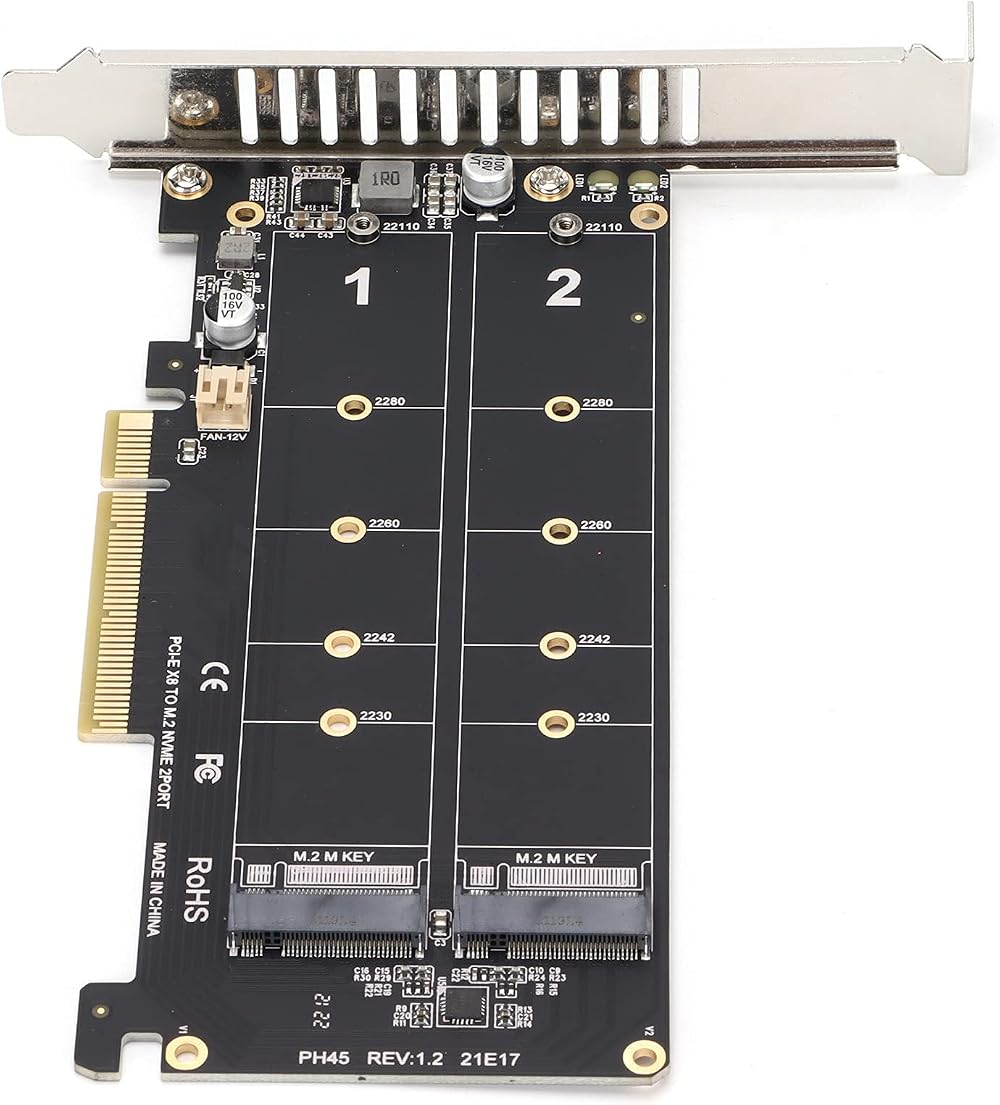

Expand Your Storage with the Yoidesu PH45 Adapter Card

This Yoidesu PH45 adapter card allows you to connect two M.2 NVMe SSDs to your motherboard via a PCIe X8 slot. It's an ideal solution for enhancing your computer's storage capacity and performance.

Key Features

• Brand: Yoidesu
• Model: PH45
• Interface: PCIe X8
• SSD Support: 2 x M Key NVMe SSDs
• Transmission Speed: Up to 2 x 32Gbps

Important Usage Information

To ensure proper functionality, please note the following requirements:

• Motherboard Support: The motherboard must support PCIe split function, configurable to PCIE X4X4X4 or 4X4 modes. It should also support PCI‑E RAID function or the HyperM.2X16 expansion card function.
• PCIe Channel Allocation: Different motherboards have varying PCIe channel configurations. Some may support fewer M.2 devices than the card's capacity if channels are shared (e.g., X8+X4+X4 configurations).
• Troubleshooting: If multiple M.2 SSDs are not recognized, consider removing or replacing other PCIe devices (e.g., graphics cards, expansion cards, onboard NVME SSDs) as PCIe channels might be shared.

Package Contents

• 1 x Adapter Card
• 2 x Nuts
• 3 x Screws
• 1 x Screwdriver
