Fafeicy 12V 1A MPPT Solar Controller Module Lithium Lifepo4 Battery Charger Car

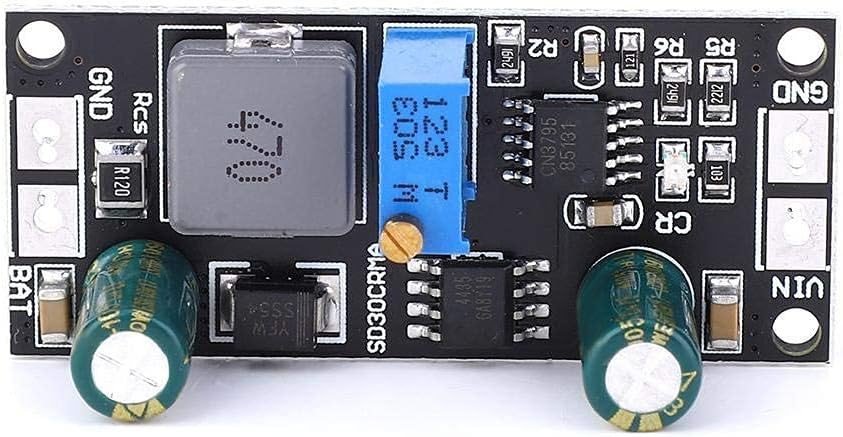

Fafeicy 12V 1A MPPT Solar Controller Module

This Fafeicy MPPT solar panel controller module is a versatile 1.1A photovoltaic battery charger with MPPT functionality, suitable for a range of battery types and applications.

Key Features

• MPPT Technology: Features Maximum Power Point Tracking for efficient solar energy harvesting.
• Multifunctional Charging: Designed for single-cell or multi-cell lithium batteries, and also acts as a voltage source when no battery is connected.
• Wide Voltage Input: Supports 3.2-18.5V input voltage range from solar panels.
• Adjustable Output: Maximum load current/current output is 1A, which can be adjusted by changing the RCS resistor value.
• Broad Compatibility: Compatible with DC6-60V lead-acid batteries and lithium-ion batteries. Also works with solar panels and wind turbines.

Applications

• 18V, 12V, 9V solar battery charging
• Car battery charging
• Mobile phone speakers
• Electric bike chargers
• UPS systems
• Portable industrial equipment

Specifications

• Brand: Fafeicy
• Output Current: 1 Ampere (adjustable)
• Input Voltage: 3.2-18.5 Volts (from solar panel)
• Battery Compatibility: Lithium-ion, LiFePO4, Lead-acid (DC6-60V settable)
• Technology: MPPT (Maximum Power Point Tracking)
