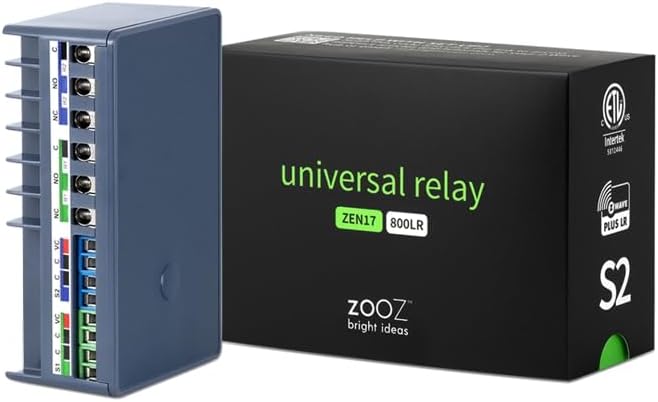

ZOOZ ZEN17 800LR Z-Wave Long Range Relay 20A 10A for Garage Doors Awnings

Control a wide range of devices with the ZOOZ ZEN17 800LR Z-Wave Long Range Relay. This versatile relay is ideal for automating awnings, garage doors, sprinklers, and more, offering flexibility with its dual relays.

Key Features

• Z-Wave Long Range (800LR): Extended wireless range for reliable control.
• Dual Relays: Includes two relays with different configurations: NO-C (Normally Open to Common) up to 20A and NC-C (Normally Closed to Common) up to 10A.
• Wide Compatibility: Works with Z-Wave hubs like Z-Box, Home Assistant, and Hubitat.
• Low-Voltage Power: Requires a low-voltage power source (12-24 V or USB C).

Important Notes & Specifications

• Power Warning: Do not exceed 20A for NO-C configuration or 10A for NC-C configuration.
• Power Source: Always use a low-voltage power source (12-24 V or USB C). Do NOT power with 110V.
• Model Number: ZEN17 800LR
• Z-Wave Region: US / CA / MX
• Maximum Load: NO-C: 20 A, NC-C: 10 A
• Z-Wave Range: Up to 300 feet line of sight (up to 1300 ft with Z-Wave Long Range).
• Dimensions: 4" x 2.5" x 1.5"
• Operating Temperature: 32-104° F (0-40° C)
• Installation: Indoor use only.

Note: A compatible Z-Wave hub is required for operation and control, including voice control via smart speakers.
