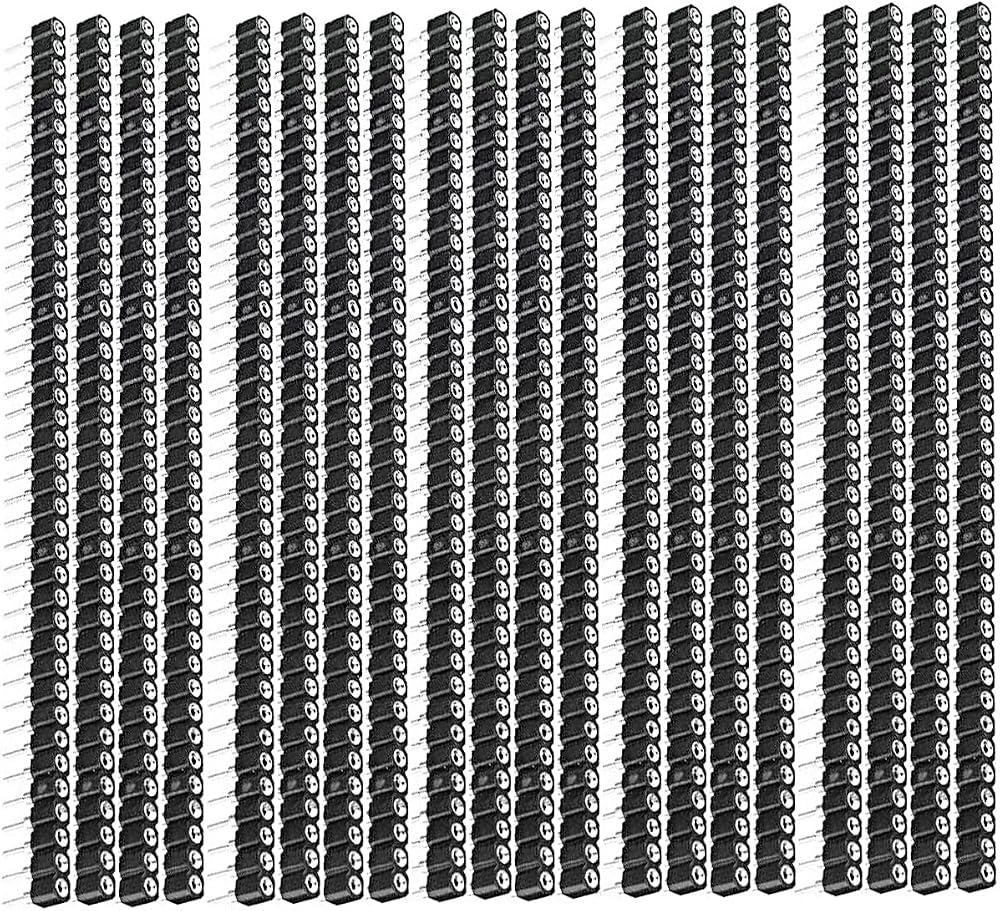

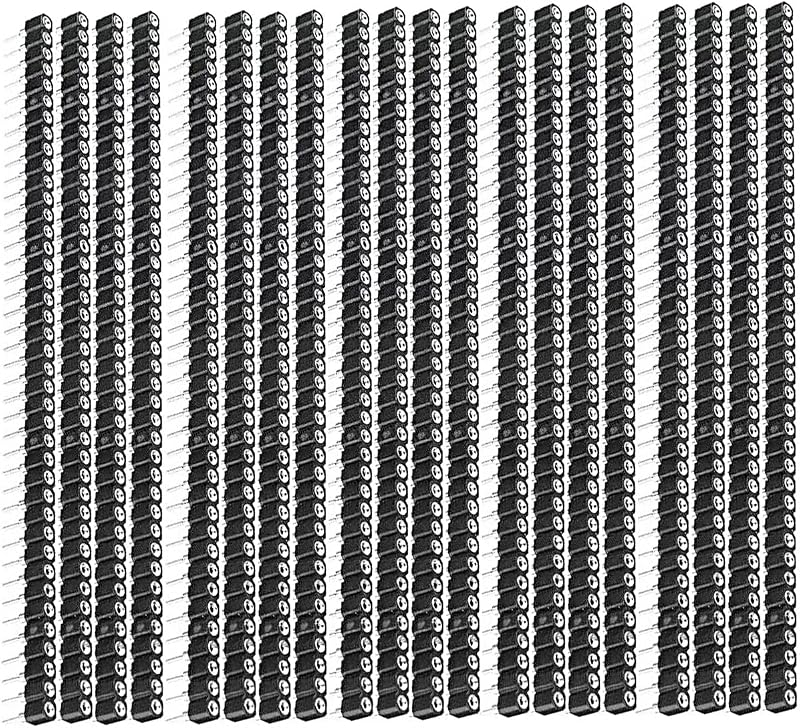

Youmile 20pcs 2.54mm Round Female Header 40pin Socket Tinned 1x40P 0.1" Single

Product Overview

These Youmile 2.54mm round female pin headers are widely used as universal connectors for PCB board connections. They serve as a crucial bridge between circuits, facilitating current or signal transmission. These headers are ideal for board-to-board connections, board-to-wire connections (when used with electronic harness terminals), or can be used independently for board-to-board setups.

Key Features

• Connector Type: 2.54mm Round Female Pin Header
• Configuration: 1x40 Pin Single Row
• Material: Tinned contact for reliable conductivity
• Quantity: Pack of 20 pieces
• Pitch: 0.1 inch (2.54mm) spacing
• Application: Ideal for circuit board connections, IC circuit experiments, and DIY electronics projects.

Specifications

• Insulating Part Material: Thermoplastic (UL94V-0)
• Contactor Material: Nickle plated iron
• Current Rating: 3AMP
• Dielectric Withstanding Voltage: 500V AC
• Contact Resistance: 20mΩ Max
• Insulation Resistance: 1000mΩ Min
• Temperature Range: -40°C to +105°C

Package Includes

• 20 x 2.54mm 1*40P Round Tinned Female Pin Headers
