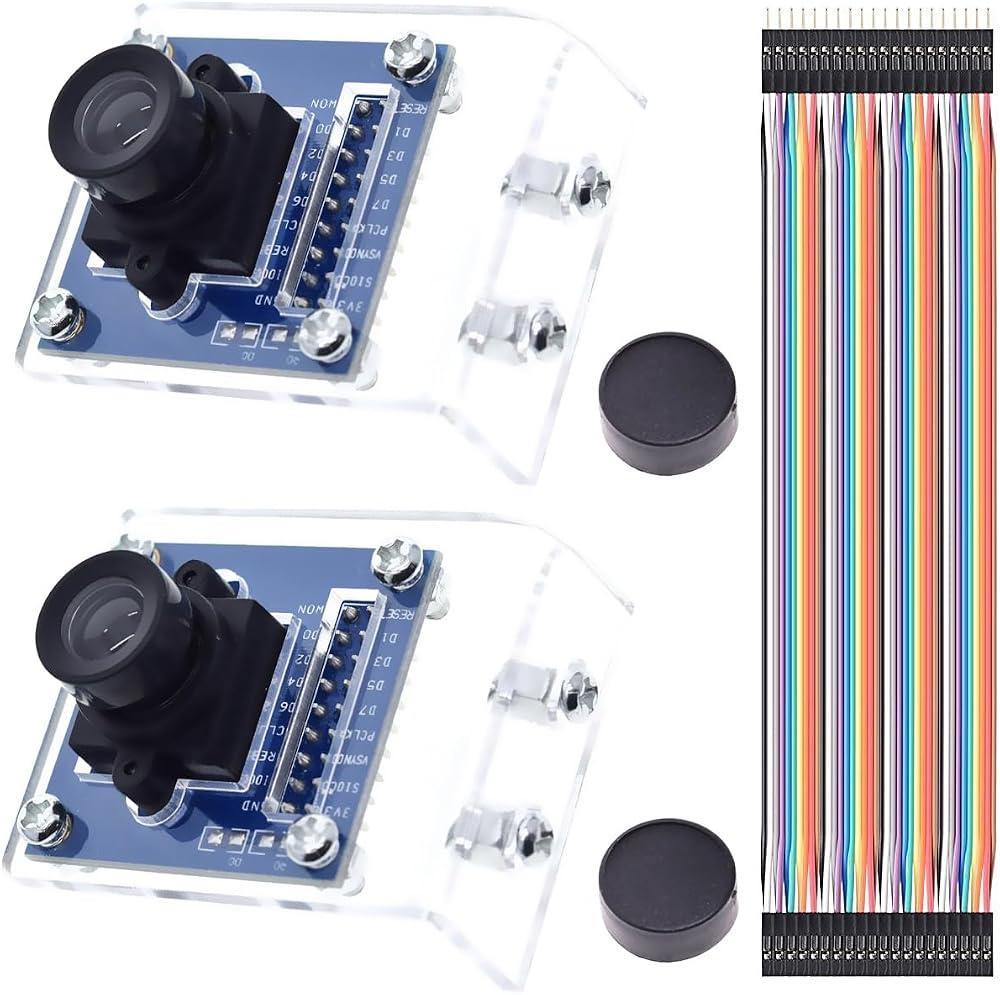

Youmile 2pcs OV7670 Camera Module 640x480 VGA CIF I2C Interface Arduino with

Youmile 2 x OV7670 Camera Modules

This listing includes two Youmile OV7670 camera modules, ideal for Arduino and embedded applications. These modules feature a 640x480 resolution and support VGA and CIF formats with an I2C interface for easy control.

Key Features

• High sensitivity for low illumination applications
• Low voltage operation suitable for embedded systems
• SCCB interface compatible with I2C
• Multiple output formats: RawRGB, RGB, YUV, YCbCr
• Supports various resolutions including VGA and CIF
• VarioPixel sampling method
• ISP functions: noise elimination and bad pixel compensation
• Image zooming support
• Lens light compensation
• Automatic 50/60 Hz detection
• Automatic saturation (UV) adjustment
• Automatic edge enhancement adjustment
• Automatic noise reduction

Specifications

• Sensitive Array: 640 x 480
• IO Voltage: 2.5 V to 3.0 V (Internal 1.8 V)
• Power Dissipation: 60 mW at 15 fps VGA YUV
• Dormancy: < 20 μA
• Operating Temperature: -30°C to 70°C
• Stable Work Temperature: 0°C to 50°C
• Output Format (8 bits): YUV/YCbCr4:2:2, RGB565/555/444, GRB4:2:2, Raw RGB Data
• Optical Size: 1/6"
• View Angle: 25°
• Maximum Frame Rate: 30 FPS VGA
• Sensitivity: 1.3 V/(Lux - SEC)
• SNR: 46 dB
• Dynamic Range: 52 dB
• Browse Mode: Line by line
• Electronic Exposure Lines: 1 through 510
• Pixel Area: 3.6 μm x 3.6 μm
• Dark Current: 12 mV/s at 60°C

Package Includes

• 2 x OV7670 Camera Module
• 40 x Male and Female DuPont Cable
• 1 x Bracket Screw Kit
