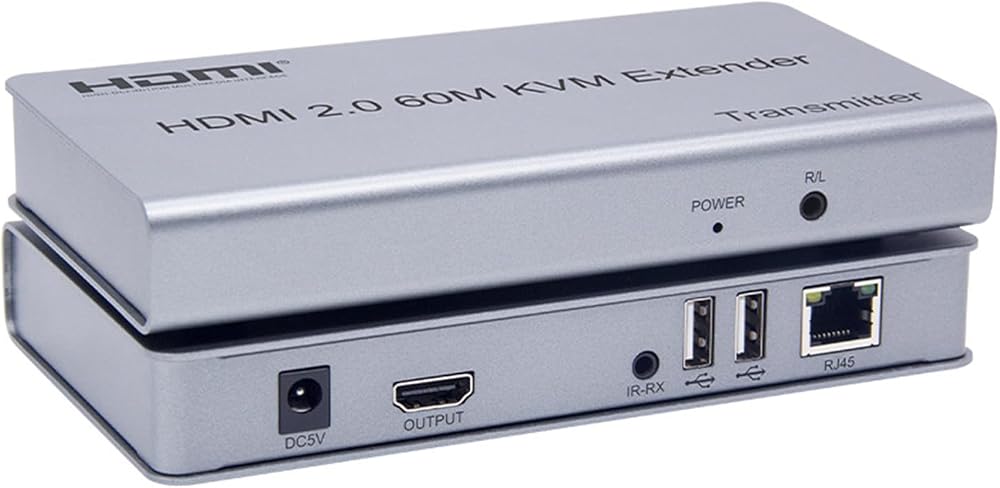

XYKJOBC 4K 60Hz HDMI 2.0 KVM Extender 60M USB Over CAT5e/6 Mouse Keyboard

Overview

The XYKJOBC KVM Extender enables long-distance transmission of high-definition HDMI signals and USB devices up to 60 meters using a single CAT5e or CAT6 Ethernet cable. This setup is ideal for extending your computer's reach for mouse, keyboard, and touchscreen control.

Key Features

• HDMI 2.0 / HDCP 2.2 Support: Ensures compatibility with the latest high-definition content.
• 60 Meter Transmission: Extends HDMI and USB signals over CAT5e/6 cables up to 60 meters.
• 4K @ 60Hz Resolution: Supports crisp 4K resolution at a smooth 60Hz refresh rate.
• Local Loop-Out: Provides a local HDMI output on the transmitter unit.

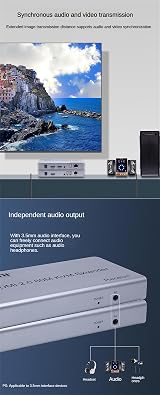

• Audio Output: Both transmitter and receiver units feature 3.5mm left and right audio output.
• IR Control Support: Allows for infrared remote control extension.
• USB Extension: Supports keyboard, mouse, and touchscreen functionality.
• Low Power Consumption: Designed for energy efficiency and high safety.
• Plug and Play Installation: Easy to set up with no complex configuration required.

Product Specifications

• HDMI and HDCP Versions: HDMI 2.0 / HDCP 2.2 (downward compatible)
• Transmission Distance (4K @ 60Hz): Up to 60 meters via CAT5e or CAT6 cable
• Supported HDMI Resolutions: 4K @ 60Hz, 4K @ 30Hz, 1080p, 720p, 576p, 576i, 480p, 480i
• Maximum Transmission Bandwidth: 600MHz
• Maximum Transmission Rate: 3 x 6Gbps
• Input HDMI Cable Length Support: Up to 5 meters (AWG26 standard)
• Output HDMI Cable Length Support: Up to 5 meters (AWG26 standard)

Package Contents

• 1 X Transmitter (TX)
• 1 X Receiver (RX)
• 1 X IR Cable
• 2 X 5V/1A Power Adapters
• 1 X User Manual
