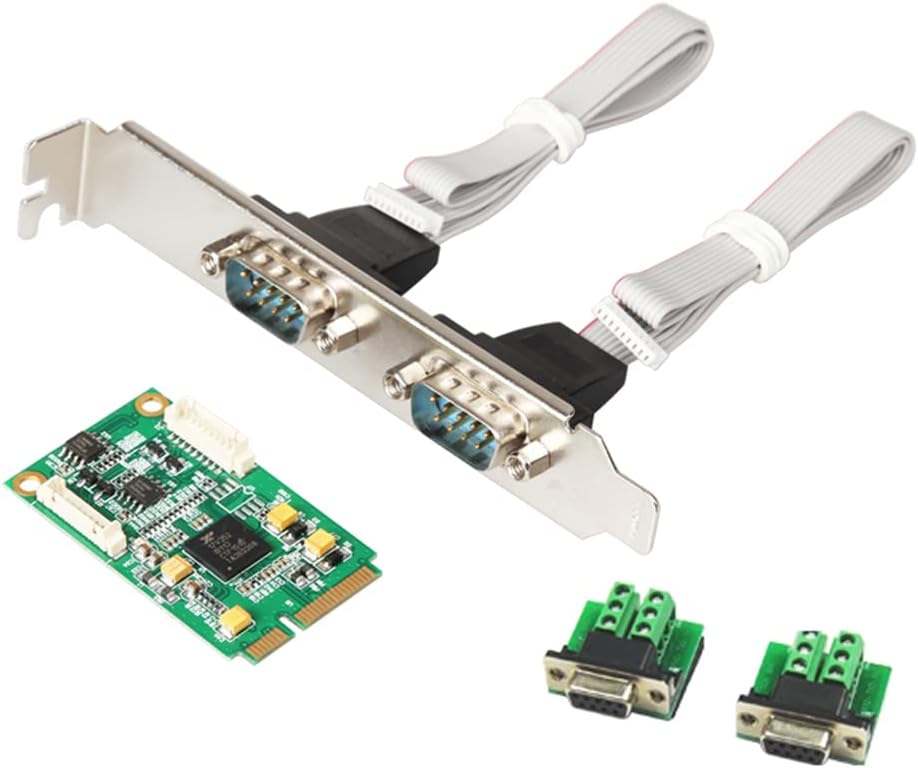

Wresetly Mini PCIe 2 Port RS422 RS485 Serial DB9 Half Size I/O Card 17V352

The Wresetly Mini PCIe 2-Port RS422 RS485 Industrial I/O Controller Card is a robust solution for adding reliable serial communication capabilities to your system. Designed for demanding industrial environments, it features extensive protection and flexible operation modes for diverse applications.

Key Features

• Working Mode: Asynchronous working, supports point-to-point or point-to-multipoint communication. Configurable for 2-wire (half duplex) or 4-wire (full duplex) operation.
• Transmission Distance: Up to 1.2km for RS485/422 ports (at 300bps-921600bps).
• Sleep Mode: Equipped with an indicator for convenient monitoring.
• Transmission Media: Compatible with twisted-pair cable or shielded cable.
• Interface Protection: Features 600W surge protection and 15 kV ESD protection for all serial ports.
• Direction Control: Automatic data-flow direction control technology ensures seamless data transmission.
• UART Interface Support: Configurable for 7 or 8 data bits, 1 or 2 stop bits, and even/odd/space/none parity.
• Flow Control: Supports none, hardware, and XON/XOFF flow control methods.
• Load Capability: Supports point-to-multipoint transmission, allowing connection of up to 32 RS422 or RS485 interface devices per converter.
• Operating Temperature: Extended range from -40 to 85⁰C for industrial environments.

Applications

• Point-of-Sale Systems
• Remote Access Servers
• Storage Network Management
• Automation and Process Control

System Requirements

• An available Mini PCIe slot
• Operating Systems:
  • Server 2003, 2008, 2012
  • XP, Vista, 7, 8
  • Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer

Package Contents

• 1 x PCIE Adapter Card
