Wresetly BCM5718 Gigabit Server Network Card PCIe X1 Dual Port LAN PXE VLAN

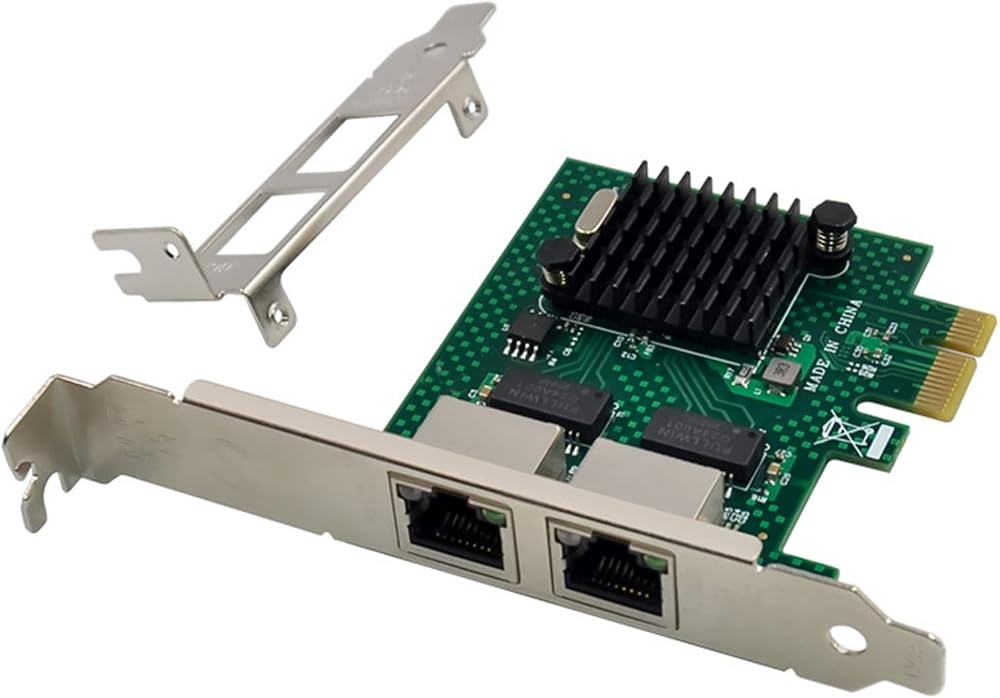

Wresetly BCM5718 Gigabit Server Network Card

This Wresetly BCM5718 Gigabit Ethernet Controller is a high-performance 10/100/1000BASE-T and 10/100/1000BASE-X LAN controller solution designed for enterprise and data center server applications. It features a PCIe 2.1 x1 interface and dual ports for enhanced connectivity.

Key Features

• BCM5718 Gigabit Ethernet: Supports Energy Efficient Ethernet (EEE) and hardware support for IEEE 1588 timestamping.
• PCIe 2.1 x1 Dual Port: Provides two 1 Gigabit LAN interfaces with separate PCI functions.
• I/O Virtualization (IOV): Features 17 receive and 16 transmit queues, with 17 MSI-X vectors for interrupt per queue.
• Flexible MSI-X: Allows flexible vector-to-queue association for send/receive queues.
• Receive Side Scaling (RSS): Supports per-queue MSI-X vector support and UDP RSS types.
• Transmit Side Scaling (TSS): Supports multiple transmit queues and MSI-X vector per queue.
• Jumbo Frames: Supports frames with payloads up to 9600 bytes.
• Virtual LAN (VLAN) Support: Complies with IEEE 802.1q VLAN tagging.
• Checksum Offload: Supports TCP, IP, and UDP checksum offload.
• Segmentation Offload: Supports Large Send Offload (LSO) and TCP Segmentation Offload (TSO).
• Time Synchronization: Hardware-assisted implementation of IEEE 1588 and IEEE 802.1AS.
• PXE Support: Compatible with Preboot Execution Environment (PXE).
• Automatic Crossover: Supports automatic MDI/MDI-X.
• ECN Compliant: Complies with PCI Base Specification v2.0.

Specifications

• Controller: Broadcom BCM5718
• Interface: PCIe 2.1 x1
• Ports: Dual Port Gigabit Ethernet (10/100/1000BASE-T/X)
• IOV Capabilities: NetQueue and VMQ support
• EEEEE Compliant: IEEE Std 802.3az 2010
• PCIe Capabilities: x2 PCI v2.0 at 5 GT/s or 2.5 GT/s
• MSI-X Vectors: 17
• Receive Queues: 17
• Transmit Queues: 16
• TLP Processing: TPH
• Jumbo Frame Payload: Up to 9600 bytes
