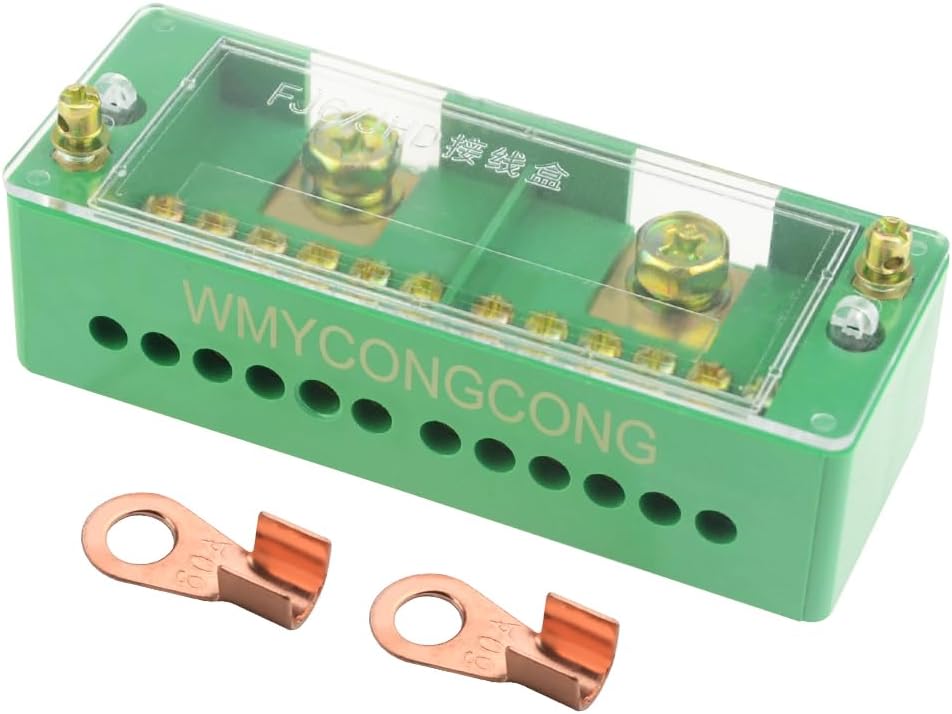

WMYCONGCONG 660V 30A Metering Junction Box 2 Inlet 12 Outlet Power Distribution

Product Overview

This WMYCONGCONG Metering Box Junction Box is designed for efficient power distribution and terminal connections. Constructed from durable polycarbonate and metal, it offers high impact resistance, moisture resistance, and excellent insulation properties.

Key Features

• High impact resistance
• Moisture resistance
• Favorable insulation
• Ageing resistance
• Flame retardant
• High temperature resistant

Specifications

• Product Name: Metering Box Junction Box
• Brand: WMYCONGCONG
• Material: Polycarbonate, Metal
• Main Color: Green
• Main Line Connection Range: 4-16 square
• Branch Wiring Range: 1.5-10 square
• Calibrated Current: 30A
• Insulation Voltage: 660V 50HZ/60HZ
• Working Temperature: -40°C to +120°C
• Between Terminals and Insulation Resistance: >40MΩ
• Dimension: 120 x 46 x 36mm / 4.68 x 1.79 x 1.4 inches (L * W * H)

Package Contents

• 1 x 2 Inlet 12 Outlet Terminal Block
