Wirquin Macdee Metro Rapid DSY8825 Oblong Siphon 8 Inch Grey White Cistern Flush

Wirquin Macdee Metro Rapid Oblong Siphon DSY8825

This Wirquin Macdee Metro Rapid Oblong Siphon, model DSY8825, is an ideal replacement part for standard size cisterns. Its innovative design features an easy-to-remove upper section, allowing for straightforward maintenance and replacement without the need to dismantle the cistern.

Key Features

• Brand: Wirquin
• Model: Macdee Metro Rapid DSY8825
• Type: Oblong Siphon
• Size: 8 inch (2.25-Inch pipe diameter)
• Color: Grey/White
• Flush Volumes: Variable between 6, 7, and 9 litres, suitable for replacement installations.
• Easy Maintenance: Removable upper section for simple servicing.

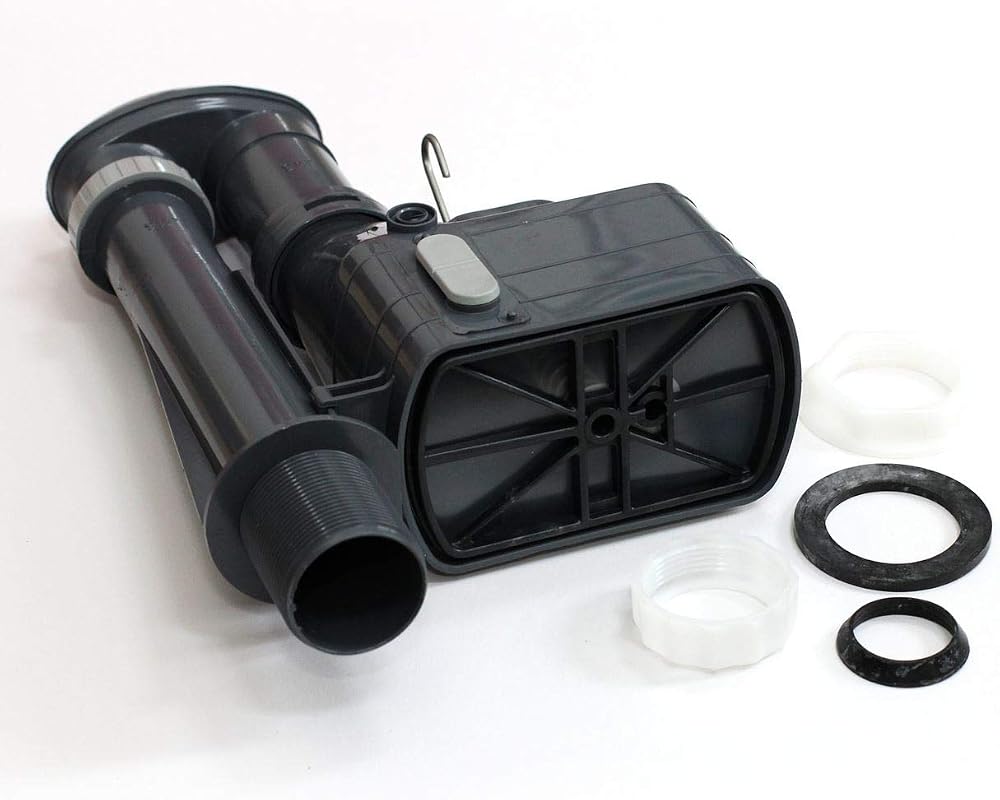

• Complete Kit: Includes siphon back nut, coupling nut, sealing washer, and low level flush pipe seal.
• Internal Overflow: Comes with an internal overflow.
• WRAS Approved: Certified for water regulations.

Installation Guidance for Internal Overflow

To determine the correct siphon height for your installation, measure from the cistern to the waterline and add 25mm. Ensure this measurement is a minimum of 10mm below any aperture in the cistern.

Manufacturers Code: DSY8825
