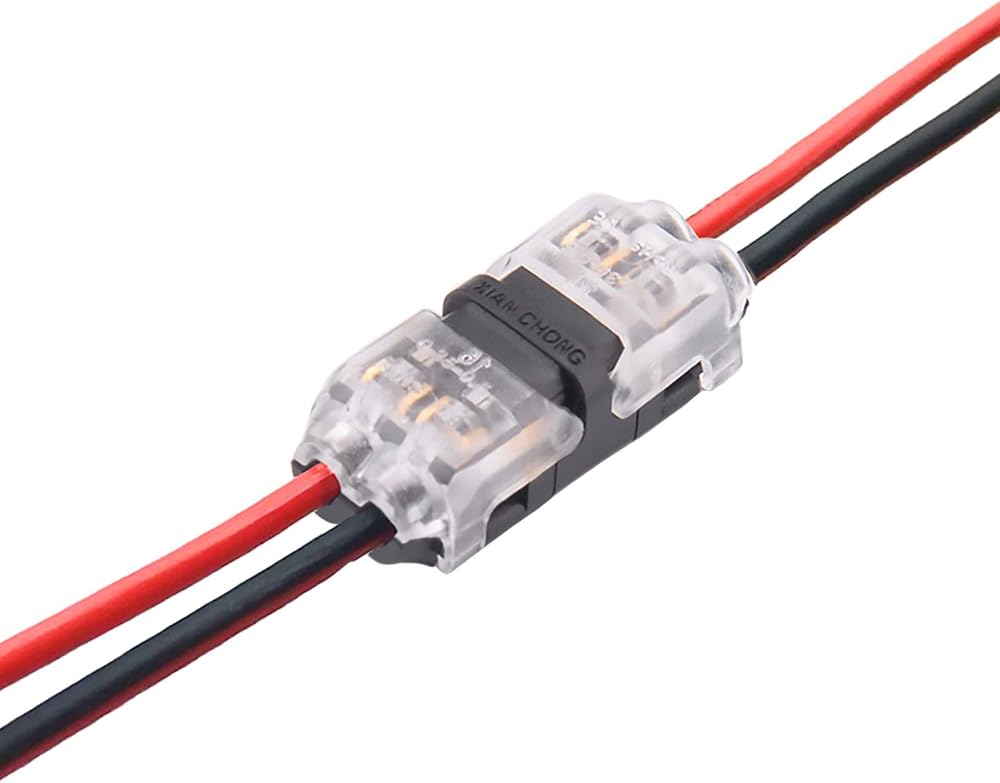

B4U Wire Connectors 12 Pack I/H Tap 2 Way 20/22 AWG Solderless

Key Features

• Brand: B4U
• Type: I/H Tap dual way wire connectors
• Pack: 12 pieces
• Wire range: 20/22 AWG (0.2–0.5 mm²); compatible with 18–24 AWG in practice
• Voltage: 12/24 V DC; 300 V AC
• Current: 0–10 A
• Construction: Solderless, no wire-stripping required; quick clamp and secure locking
• Temperature: -30 °C to +85 °C
• Features: Water and dust resistance, reusable, reduces installation time

Description

The B4U 12-pack I/H Tap dual range low-voltage wire connectors provide fast, solderless connections for mid-span branching in low-voltage wiring. No peeling of insulation or wire jacket removal is required; insert wires and squeeze to secure a tight, reusable connection. Suitable for LED lighting, automotive, audio/video, and other low-voltage applications. Compatible with 18/20/22/24 AWG cables; note that exact diameters vary by 18 AWG wire from supplier to supplier.

Specifications

• Working voltage: 12 V / 24 V DC, 300 V AC
• Working current: 0–10 A
• Operating temperature: -30 °C to +85 °C
• Cable compatibility: 18/20/22/24 AWG (0.2–0.5 mm²)
• Usage: Low-voltage equipment, mid-span branching, quick connections

Note: For 18 AWG wires, compatibility depends on outer diameter; some 18 AWG cables may fit these connectors.
