Waveshare RS232 485 422 to RJ45 Ethernet Module PoE TCP IP Serial Gateway

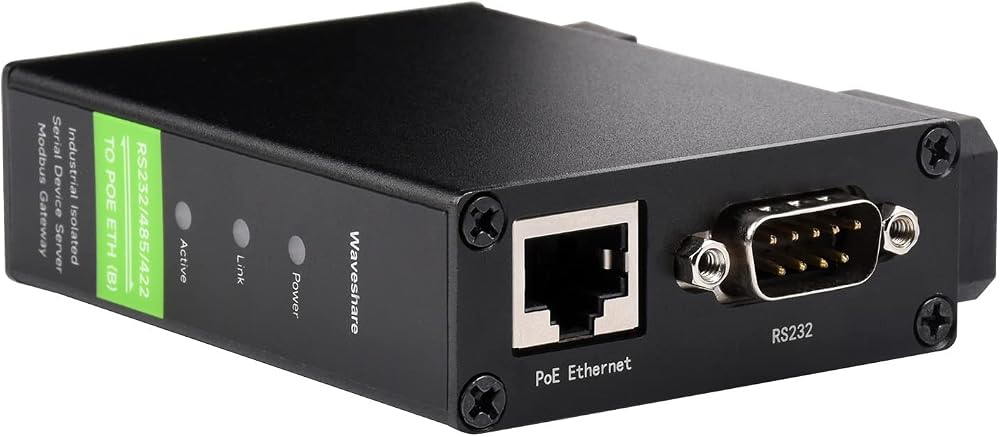

Waveshare RS232/485/422 to RJ45 Ethernet Module

This industrial-grade serial server and IoT gateway is designed for robust data acquisition and intelligent instrument monitoring. It seamlessly bridges serial communication with Ethernet networks, offering versatile functionality including Modbus gateway and MQTT gateway capabilities. Ideal for upgrading existing Modbus networks and integrating with 3D force control modal components.

Key Features

• Multi-Protocol Support: Combines RS232, RS485, and RS422 serial interfaces with an RJ45 Ethernet port.
• PoE Functionality: Supports IEEE 802.3af PoE standard for power supply over Ethernet, simplifying installation.
• Flexible Power Options: Also supports power via terminal block and DC port (5.5mm outer, 21mm inner) with a wide DC 6-36V voltage input range.
• Bi-directional Transparent Transmission: Enables seamless data flow between serial devices and the network.
• Multiple Communication Modes: Supports TCP Server, TCP Client, UDP Mode, and UDP Multicast.
• Protocol Conversion: Facilitates MQTT/JSON to Modbus conversion for enhanced flexibility.
• Multi-Host Support: Enables communication with multiple network devices simultaneously without crosstalk.
• User-Defined Packets: Supports custom Heartbeat and Registration packets for easy cloud communication and device identification.
• NTP Protocol Support: Allows for obtaining network time information for serial output or data uploads.
• Industrial Design: Compact size with rail-mount support for easy installation in industrial environments.

Applications

• Data Acquisition
• IoT Gateways
• Safety & Security IoT
• Intelligent Instrument Monitoring
