Waveshare QFP100 LQFP100 STM32 IC Test Socket Adapter 0.5mm Pitch Programming

Waveshare QFP100 LQFP100 STM32 IC Test Socket Programming Adapter

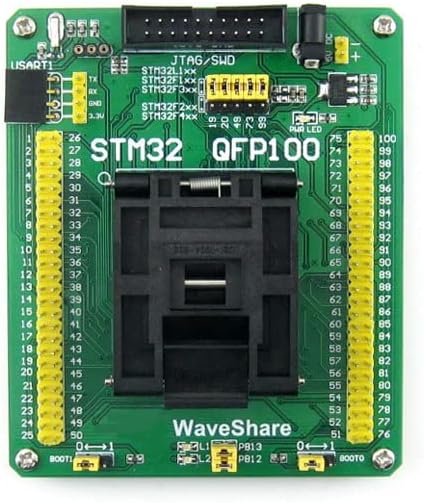

This Yamaichi IC Test & Burn-in Socket from Waveshare is designed for programming and testing STM32 microcontrollers in the QFP100 package with a 0.5mm pitch.

Key Features

• Simple board specifically for STM32 QFP100 (0.5mm pitch) microcontrollers.
• Features a 20-pin JTAG/SWD port for programming and debugging.
• Supports a 4-pin USART1 interface for programming/testing.
• Onboard socket for connecting an external crystal for system clock.
• Includes an onboard 32.768K crystal oscillator.
• Two LED indicators for testing, connected to I/O pins via jumpers.
• All MCU pins are accessible on expansion connectors with a 2.54mm (100mil) pin header pitch.

Supported Devices

STM32 microcontroller in QFP100 (0.5mm pitch) package with compatible pinouts:

• STM32L1xxV series (e.g., STM32L151VB, STM32L152VB)
• STM32F1xxV series (e.g., STM32F103VE, STM32F100VE)
• STM32F2xxV series (e.g., STM32F207VC, STM32F215VC)
• STM32F3xxV series (e.g., STM32F303VC, STM32F373VB)
• STM32F4xxV series (e.g., STM32F407VG, STM32F415VG)

Configure the onboard Device selection jumpers according to the device to be programmed.

Specifications

• Part Number: IC51-1004-809
• Pitch: 0.5 mm
• Pins: 100
• Applicable IC Dimensions: 14 x 14 mm (REF.)
• Outside Dimensions: 39 x 39 mm (REF.)
• JTAG/SWD Port: Compatible with ST-LINK / J-LINK / ULINK2 / STX-RLINK
• USART1 Port: Supports ISP and serial port debugging
• Pin Header Pitch: 2.54 mm (100 mil)

Package Contents

• 1x Waveshare QFP100 LQFP100 STM32 IC Test Socket Programming Adapter
