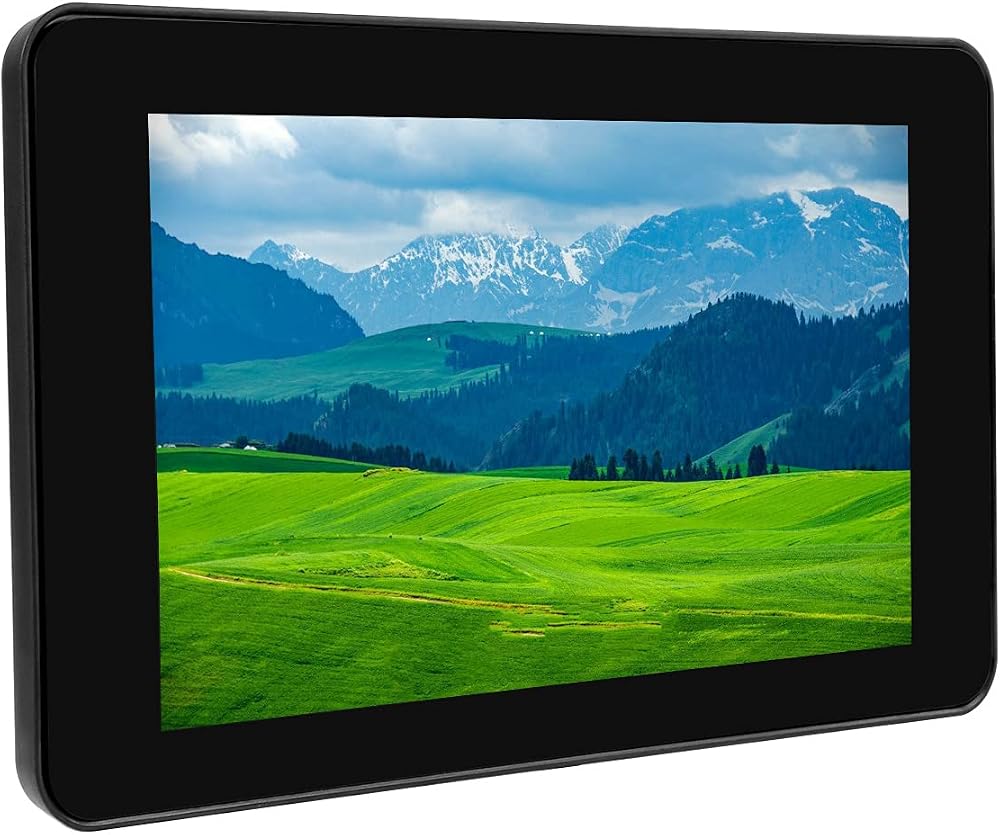

Waveshare 7 Inch DSI LCD Touch Screen with Case for Raspberry Pi 4B 800x480

Introduction

This 7-inch capacitive touch display is designed for the Raspberry Pi 4B, featuring a protective case and a 800 x 480 resolution with a TFT wide-angle screen. It utilizes the MIPI DSI interface for connectivity.

Key Features

• Screen Size: 7 inch TFT display
• Resolution: 800 x 480 hardware resolution
• Touch Functionality: Capacitive touch panel supporting up to 5-point touch
• Interface: MIPI DSI interface with refresh rate up to 60Hz
• Operating System Support: Supports Raspbian (5-point touch, driver free), Ubuntu / Kali / WIN10 IoT (single point touch, driver free), and Retropie (driver free)
• Backlight Control: Backlight adjusts by software

Software Setup Guide

To set up the software, follow these general steps:

1. Download the desired operating system image (Raspbian, Ubuntu, Kali, or WIN 10 IoT) from the Raspberry Pi website.
2. Unzip the downloaded file to obtain the .img file.
3. Format the TF card using SDFormatter.exe.
4. Use Win32DiskImager.exe to write the system image to the TF card.
5. Safely eject the TF card after the writing process is complete.
6. Power on the Raspberry Pi. The LCD should display normally after a few seconds, and touch functionality will be available after the system starts.

Package Content

• 1 x 7 inch DSI LCD kit
• 1 x Black case kit
