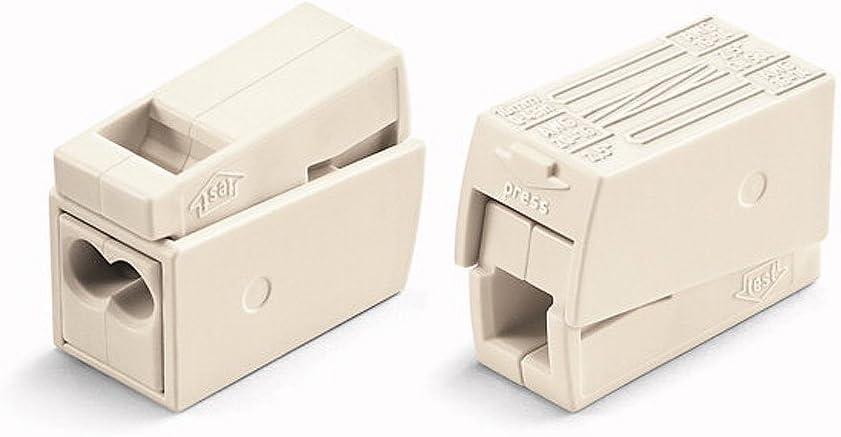

WAGO 224-112 Terminal Block 1 Way 300V 20A Grey 25 Pieces 18-16 AWG

WAGO 224-112 Pluggable Terminal Block - 25 Pieces

This WAGO 224-112 terminal block is designed for effortless connections between solid and fine-stranded conductors. It offers tool-free connection and is ideal for applications such as Venetian blinds, roller shutters, awning motors, fans, circulation pumps, and boiler controls.

Key Features

• Type: Pluggable Terminal Block
• Model: 224-112
• Brand: WAGO
• Ways: 1
• Voltage Rating: 300 V
• Amperage Rating: 20 A
• Wire Gauge Compatibility: 18 AWG, 16 AWG (0.5 mm² to 2.5 mm²)
• Color: Grey
• Connection Type: Push wire, CAGE CLAMP
• Approvals: Tested and approved according to VDE 0606
• Operating Temperature: Max. Continuous 105 °C, Max. Ambient 60 °C
• Quantity: 25 pieces

Conductor Compatibility

The WAGO 224-112 can clamp the following copper conductors:

• Single wire
• Multi-stranded
• Fine-stranded (also with tin-plated individual cores)
• Fine-stranded, stranded
• Fine-stranded, with ferrule (gas-tight crimped)
• Fine-stranded, crimped with pin terminal (gas-tight)

This terminal block is a standard design for light applications, ensuring a secure connection for electrical devices with flexible connection cables.
