Vonets VM300-H 2.4GHz WiFi Module Router Bridge Repeater AP 300Mbps 2xAntennas

Vonets VM300-H Industrial WiFi Module

The Vonets VM300-H is a versatile 2.4GHz WiFi module designed for industrial and DIY engineering applications. It functions as a mini router, bridge, repeater, or WiFi to Ethernet AP, offering flexible network solutions.

Hardware Features

• Two external antennas with RF female sockets.
• Wide power supply working voltage: DC5V--15V.
• Power supply: 5V/1A.
• Supports power input over-voltage protection (automatic power-off when voltage exceeds 15.5V).
• 2.4GHz WiFi frequency band, 2T2R dual antenna, 300Mbps transmission rate.
• Supports temperature compensation and frequency stabilization technology (TAFC) for stable WiFi signal.
• Supports 802.11b/g/n modes.
• Working environment temperature: -25℃ to 55℃.

Function Features

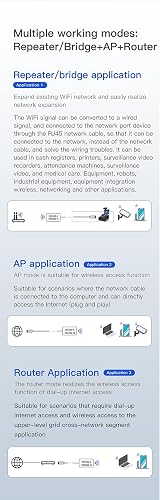

• Two software-controllable working modes: routing mode, bridge + relay mode.
• Supports intelligent transparent bridge mode, and simultaneously supports AP Client and AP Station.
• Device parameters can be configured via WEB page or the VCC mobile phone APP.
• Software adjustable WiFi RF output power: 14.5dbm/16dbm.
• Supports SSA 1.2 version signal strength remote center alarm protocol.
• Supports transparent transmission of serial and network data (VONETS-UART_UDP or TCP data forwarding instructions 3.0).
• Supports VDNS technology for configuration and secondary development in bridge mode via domain login page.
• Utilizes original D/A temperature compensated auto frequency control technology (TAFC) for sustained WiFi signal stability.

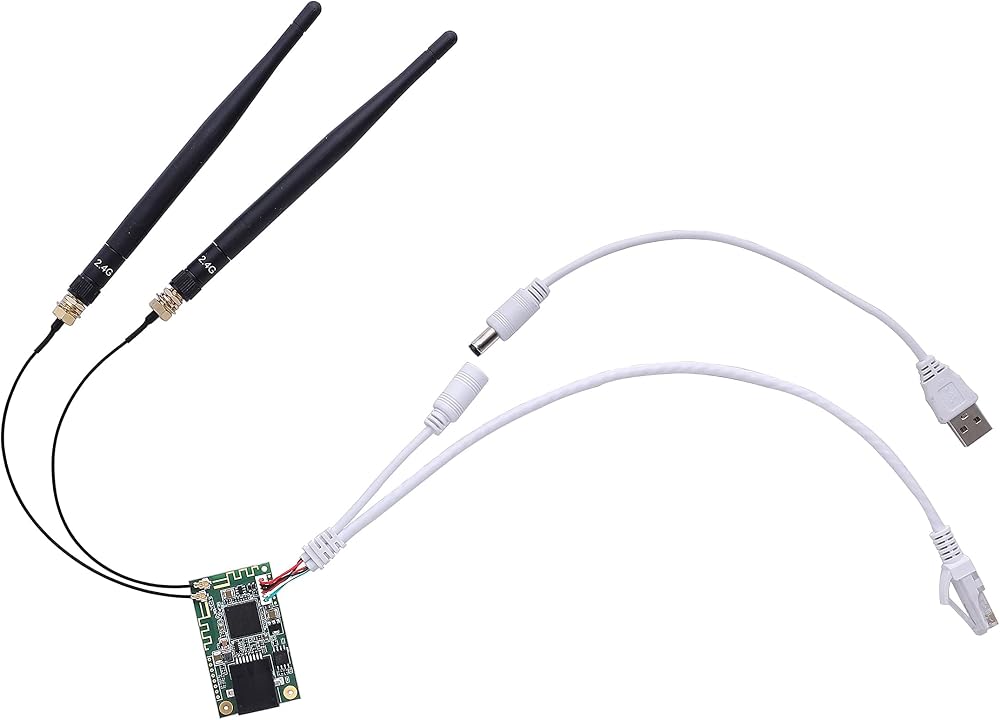

Package Contents

• 1 x VM300-H Module
• 1 x USB Cable
• 1 x Ethernet Cable
• 2 x 2.4G 3dBi External Antennas
• 1 x User Manual
• 1 x Packing Box
