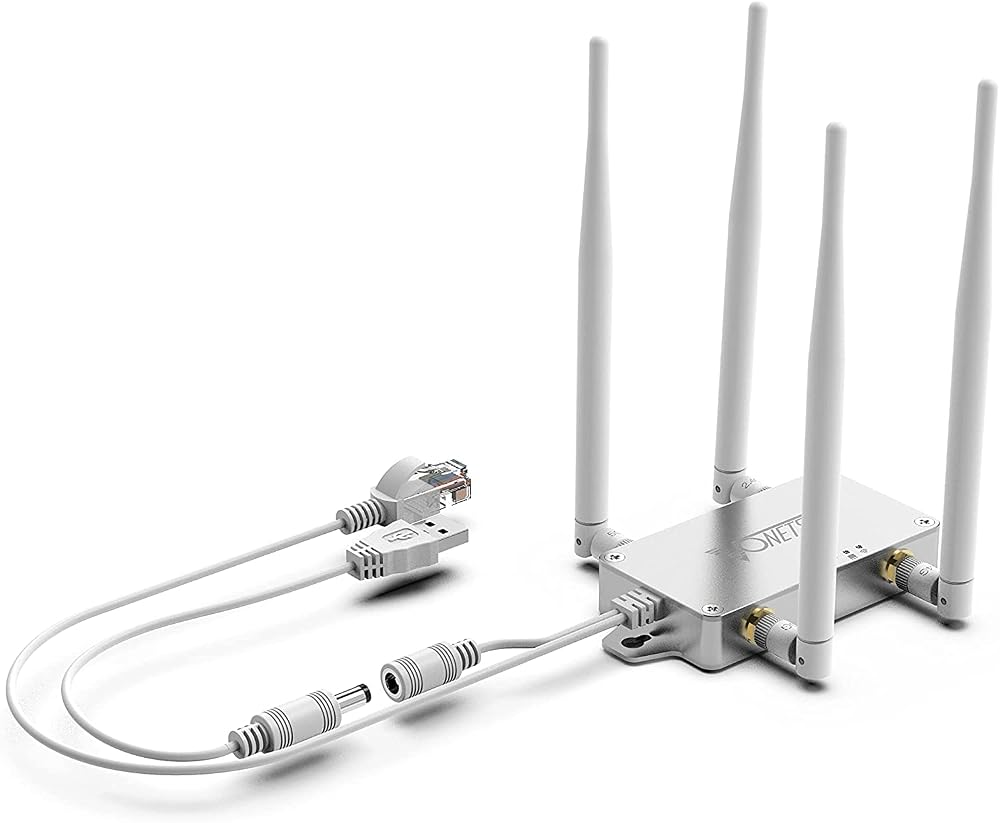

Vonets VBG1200 Industrial Dual Band WiFi Bridge Router AC1200 Ethernet Adapter

The Vonets VBG1200 is an industrial-grade mini dual-band WiFi bridge, router, WiFi Ethernet adapter, and WiFi hotspot. This versatile device enables both WiFi to wired and wired to WiFi functionality (Ethernet to WiFi or WiFi to Ethernet) in a compact form factor.

Key Features

• Dual Band AC1200 WiFi: Supports 802.11ac/a/b/g/n with combined speeds of 300Mbps (2.4GHz) and 900Mbps (5GHz).
• Ethernet Port: Features one 10/100Mbps adaptive Ethernet port (RJ45 male).
• Flexible Operation Modes: Functions as a Router mode (supporting WiFi WAN uplink and WAN/LAN wired network port exchange) or a Smart WiFi Bridge Repeater mode (providing WiFi to wired and wired to WiFi functions with IP layer or MAC layer transparent transmission).
• Versatile Power Options: Powered by a wide voltage range of DC5V-15V (typical 5V/2A) with two-stage automatic overvoltage protection (upper limit 15.5V). Can be powered via USB or DC power cable (do not use both simultaneously). Designed for easy power sharing with other devices.
• Robust Industrial Design: Equipped with a fixed hook, includes a fixing kit, and an industrial DC connector, making it suitable for demanding industrial applications.
• Extended Transmission Range: Achieves point-to-point transmission distances of up to 300 meters without obstacles for small data (802.11a), and less than 100 meters for video transmission.
• External Antennas: Includes two 2.4GHz 3dBi and two 5GHz 3dBi external antennas for enhanced signal.
• Smart Hotspot Management: Features automatic hotspot reconnection, two hotspot matching methods (full match authentication mode, SSID and password authentication mode), SSA signal strength detection reporting, motion detection, and memory for up to 100 hotspots for WiFi motion applications.

Applications

This device is an excellent solution for connecting various network-enabled devices, including:

• Network Printers
• Monitors
• DVRs
• IP Cameras
• Medical Devices
• IoT Devices
• Video Transmission Systems
• POS Cash Registers
• PS3
• Robots
• Doll Machines
• Electronic Scales
• PLCs
• And many other network applications.
