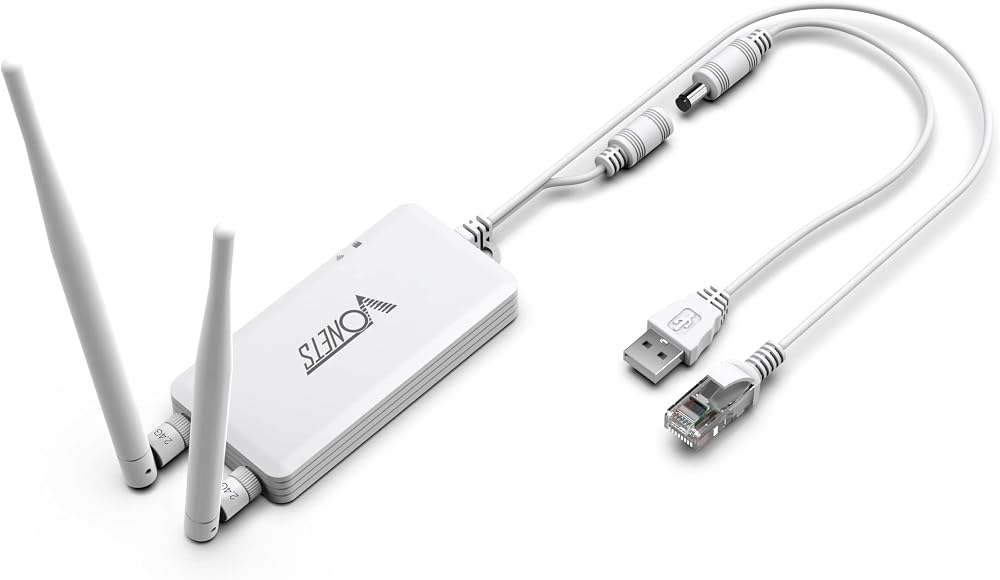

Vonets VAP11S WiFi Bridge Repeater Router 300Mbps 2.4GHz 2xRJ45 Antennas

Vonets VAP11S Industrial WiFi Bridge/Repeater/Router

The Vonets VAP11S is a 2025 upgraded industrial-grade mini WiFi bridge, repeater, router, and wireless access point. It's designed for reliable connectivity and features a new process design for super stability.

Key Features

• Functionality: Acts as a WiFi to Ethernet converter, allowing wired devices to connect to WiFi, or wired devices to provide WiFi connectivity.
• Wired Device Connectivity: Perfect for connecting devices like security systems, DVRs, IP cameras, medical devices, IoT devices, video transmission equipment, industrial PLCs, game consoles (PS3), network printers, robots, and crane machines to your WiFi network.
• Wireless Parameters: Supports 300Mbps WiFi rate and 802.11B/G/N wireless protocols. Features 2 external antennas for extended data transmission distance.
• Ethernet Ports: Equipped with 1 RJ45 network cable port and 1 additional 100Mbps network port, supporting up to 2 wired and 20 wireless devices simultaneously.
• Power Options: Powered by a wide voltage DC5V-24V (typical 5V/2A with ripple less than 100mV). Includes two-stage automatic overvoltage protection (upper limit 27V). Offers USB or DC power options, making it suitable for industrial applications.
• Included Accessories: Comes with a fixing kit and an industrial DC connector.

Specifications

• Brand: Vonets
• Model: VAP11S
• Frequency: 2.4GHz
• WiFi Rate: 300Mbps
• Wireless Protocol: 802.11B/G/N
• Transmit Power: 19dBm
• Ethernet Ports: 2 RJ45 (100Mbps)
• Power Input: DC5V-24V
• Overvoltage Protection: Upper limit 27V
• Simultaneous Devices: Up to 2 wired, 20 wireless

Please refer to the included manual or configuration video for detailed setup instructions to ensure successful configuration.
