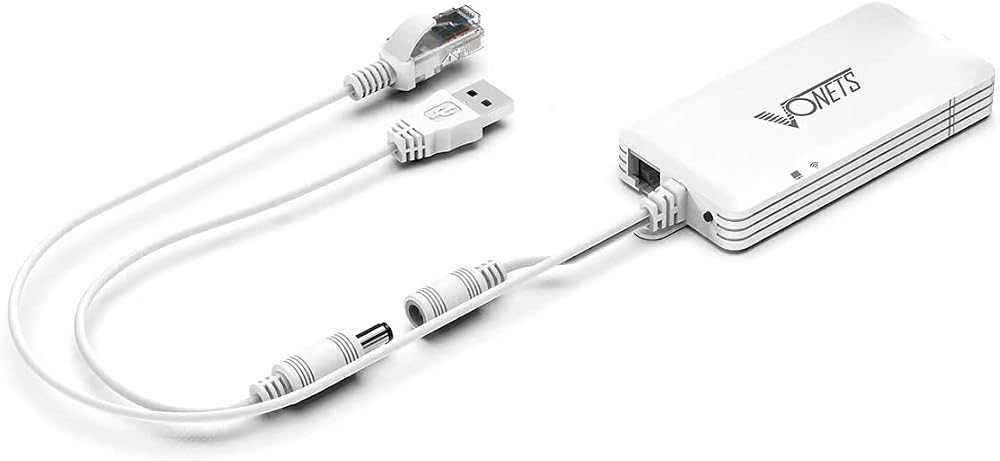

Vonets VAP11G-500S 2.4GHz WiFi Bridge Repeater Mini Router 2 RJ45 Ports DC Power

Vonets VAP11G-500S Industrial WiFi Bridge/Router/Repeater

The Vonets VAP11G-500S is an industrial-grade 2.4GHz High Power WiFi bridge featuring three-in-one functionality: professional WiFi router, WiFi bridge, and WiFi repeater. It seamlessly converts between WiFi to Wired and Wired to WiFi connections (WiFi to Ethernet or Ethernet to WiFi).

Key Features

• Three-in-One Functionality: Acts as a WiFi Router, WiFi Bridge, or WiFi Repeater.
• Multiple Application Methods: Supports Router mode (WiFi WAN uplink, WAN/LAN exchange), WiFi Repeater (extend WiFi range), and WiFi Bridge (IP/MAC layer transparent transmission).
• High WiFi Rate: Up to 300Mbps.
• High WiFi Tx Power: 19/23dBm (2.4GHz) for extended range.
• Long Transmission Distance: Up to 200 meters without obstacles (small data, 802.11n) and less than 100 meters for video transmission.
• Industrial Applications: High power design makes it suitable for demanding industrial environments.
• Versatile Connectivity: Equipped with 2 RJ45 ports for wired connections.
• Flexible Power Options: Powered via USB or DC input (wide voltage range DC5V-24V, typical 5V/2A).
• Advanced Features: Supports two-stage automatic overvoltage protection (upper limit 27V), WiFi hotspot auto-reconnection, SSA signal strength detection, and motion detection for WiFi motion applications.

Applications

Ideal for a wide range of devices including Network Devices, Medical Equipment, IoT devices, Network printers, PLCs, robots, monitors, IP cameras, POS Cash Registers, PS3, and more.

Technical Specifications

• Brand: Vonets
• Model: VAP11G-500S
• WiFi Standard: 2.4GHz
• WiFi Rate: 300Mbps
• WiFi Tx Power: 19dBm (2.4GHz), 23dBm (2.4GHz)
• Antennas: 2 x Smart 2.4GHz antennas
• Ports: 2 x RJ45
• Power Input: DC5V-24V (Typical 5V/2A)
• Overvoltage Protection: Two-stage automatic, upper limit 27V
