Vonets VAP11S-D232 Dual Band WiFi Serial Port Server Bridge Repeater Extender

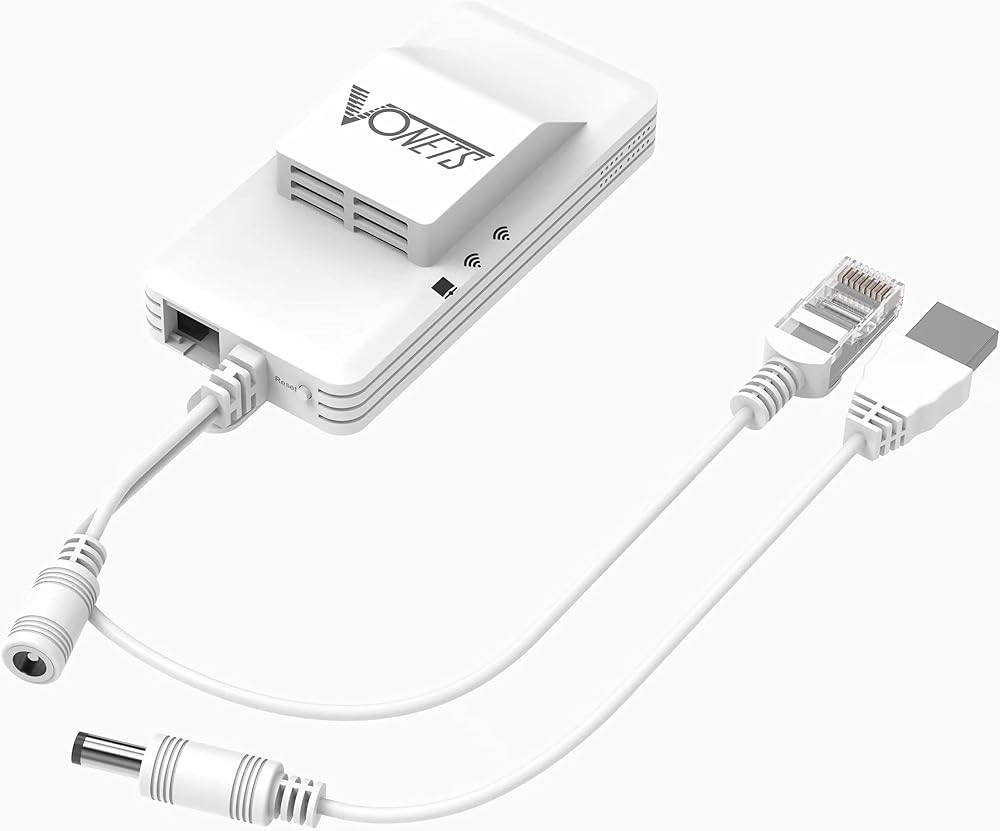

Vonets VAP11S-D232 Industrial Dual Band WiFi Serial Port Server/Bridge

The Vonets VAP11S-D232 is an industrial-grade Dual Band (2.4GHz/5GHz) WiFi Serial Port Server and Bridge, designed to provide robust wireless connectivity for a wide range of devices. It functions as a WiFi to Ethernet adapter, WiFi repeater, and WiFi Access Point, offering flexible networking solutions.

Key Features

• Dual Band WiFi: Supports both 2.4GHz (300Mbps theoretical) and 5GHz (900Mbps theoretical) for high-speed wireless connections.
• Multiple Application Modes: Serial port mode for WiFi serial conversion, WiFi Bridge (WiFi to Wired), WiFi Repeater for signal extension, and Router mode with WiFi WAN uplink.
• Wide Device Compatibility: Ideal for monitoring systems, electronic scales, DVRs, IP cameras, medical devices, IoT devices, PLCs, AGVs, network printers, robots, and other devices with RJ45 Ethernet or serial interfaces (RS-232).
• Flexible Power Options: Supports USB or DC power supply with a wide voltage range (DC5V-24V) and overvoltage protection.
• Versatile Port Configuration: Features dual UART serial ports (TTL level), one 10/100Mbps adaptive Ethernet port, and optional RJ45 to DB9 motherboard for RS232 level conversion.
• Advanced Functionality: Supports serial transparent transmission (one-to-one and one-to-many) and IP/MAC layer transparent transmission for specialized applications.

Specifications

• Brand: Vonets
• Model: VAP11S-D232
• WiFi Standards: 802.11b/g/n/a/ac
• WiFi Rates: 2.4GHz up to 300Mbps, 5GHz up to 900Mbps (theoretical)
• Power Input: USB or DC 5V-24V
• Network Ports: 1 x 10/100Mbps Adaptive Ethernet Port
• Serial Ports: 2 x UART (TTL Level)
• Optional Serial Interfaces: RJ45 to DB9 (RS232), RJ45 to 5Pin wiring base, VRJ45-422-1 (RS485/RS422)

Please refer to the product manual for detailed configuration and setup instructions.
