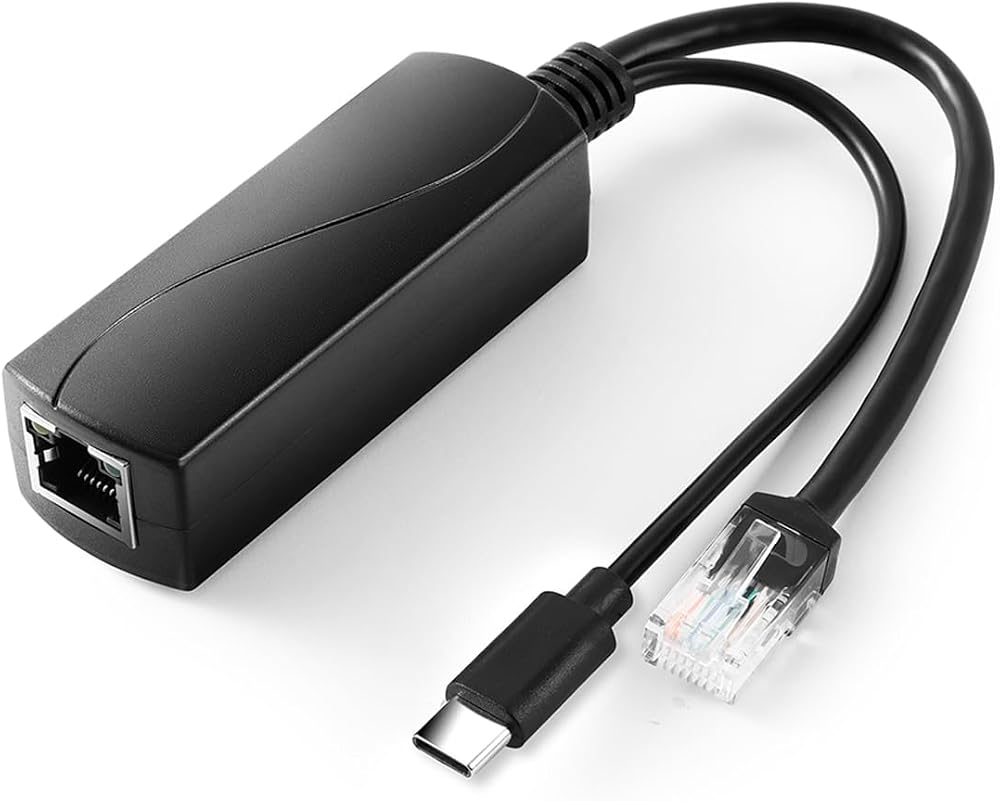

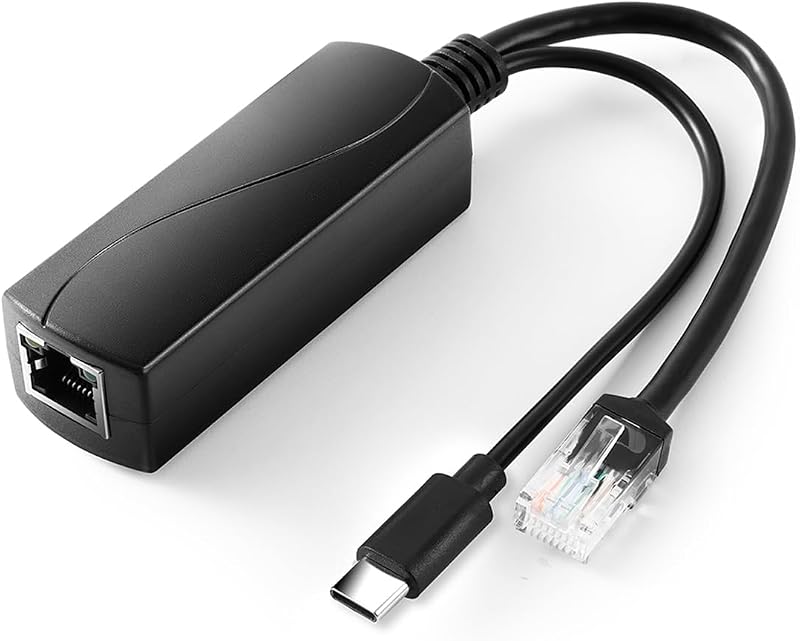

Revotech Type C PoE Splitter 5V 2.4A IEEE 802.3af 10/100M for IP Camera CCTV

Product Overview

The Revotech TYPEC0502 PoE splitter is an economical and practical solution for providing power to terminal devices that do not support Power over Ethernet. It is designed based on the IEEE 802.3af standard and separates power and data transmitted over a single Ethernet cable. This splitter is ideal for use with PoE switches or PSE injectors, allowing for simultaneous power and data delivery.

Key Features

• Standard Compliance: IEEE 802.3af (12.5W)
• Data Transfer Rate: 10/100M Ethernet
• Power Output: 5V / 2.4A via Type-C port (Type-C port is for power charging only)
• Input Voltage: 37V-57V (automatically detects power from PSE)
• Protection: Isolation circuit protection, short circuit protection, overvoltage protection
• Isolation Voltage: 1500V high voltage isolation
• Connectivity: 1 x Input RJ45 port, 1 x Output RJ45 port, 1 x DC output (Type-C)

Specifications

• Model: TYPEC0502
• Transfer Rate: 10/100M
• Power Input: 48V DC / 0.35A
• Power Output: 5V / 2.4A
• Standard: IEEE 802.3af (12.5W)
• Power Pin Assignment: TRNF 1/2(+),3/6(-); 4/5(+),7/8(-)
• Interface Types: 1 Input RJ45, 1 Output RJ45, 1 DC Output (Type-C)
• IEEE Standards Supported: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
• LED Indicator: Yellow PoE lamp
• Operating Temperature: -20~50°C
• Storage Temperature: -30~60°C
• Operating Humidity: 10%~90% (Non-condensing)
• Storage Humidity: 5%~95% (Non-condensing)
• Dimensions: 27.5 x 2.8 x 2.3cm
• Weight: 0.05kg

Package Content

• 1 x Revotech POE Splitter (TYPEC0502)
