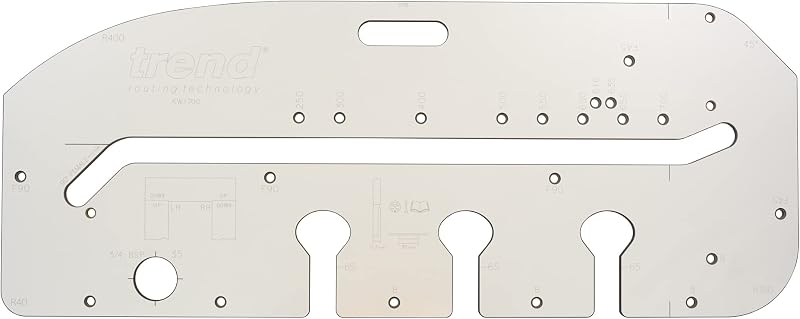

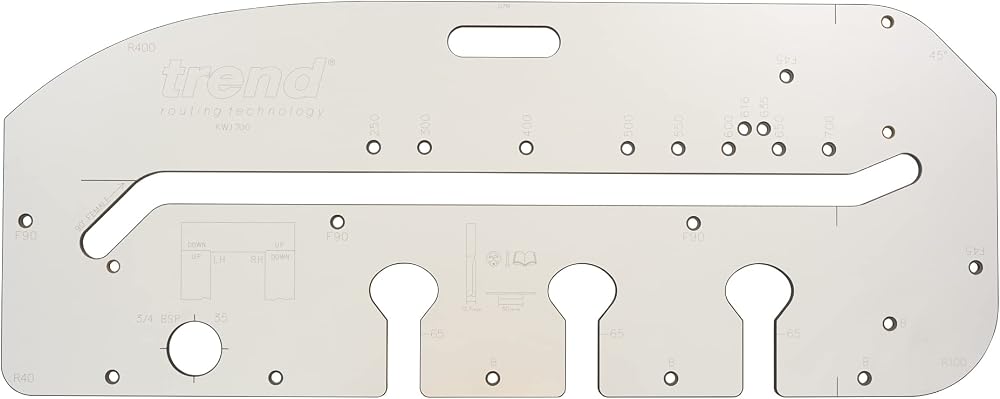

Trend KWJ700 Kitchen Worktop Jig for Precise Joints 700mm Router Jig

The Trend Kitchen Worktop Jig provides accurate jointing for kitchen and bathroom worktops, delivering tight, professional finishes on laminate, solid timber and composite surfaces. Designed for versatility and precision, this jig supports common worktop widths and is compatible with 1/2 inch routers.

Key Features

• Accurate worktop joints for a professional finish on various surfaces
• Material compatibility 12mm solid laminate construction suitable for laminate, solid timber and composite worktops
• Router compatibility requires a 1/2 inch collet router with a 1/2 inch diameter cutter and 30mm guide bush
• Simple alignment system easy alignment pin system with etched instructions and included manual
• Fits common worktop widths options for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm and 700mm

Specifications

• Brand: Trend
• Model: KWJ700
• Material: 12mm solid laminate
• Operating router size: 1/2 inch collet, 1/2 inch diameter cutter
• Includes: alignment pins, etched guidance, instruction manual

Note: Ensure compatibility with your router and worktop dimensions before use. This jig is designed to facilitate precise, repeatable worktop joints across common widths for upscale, professional results.
