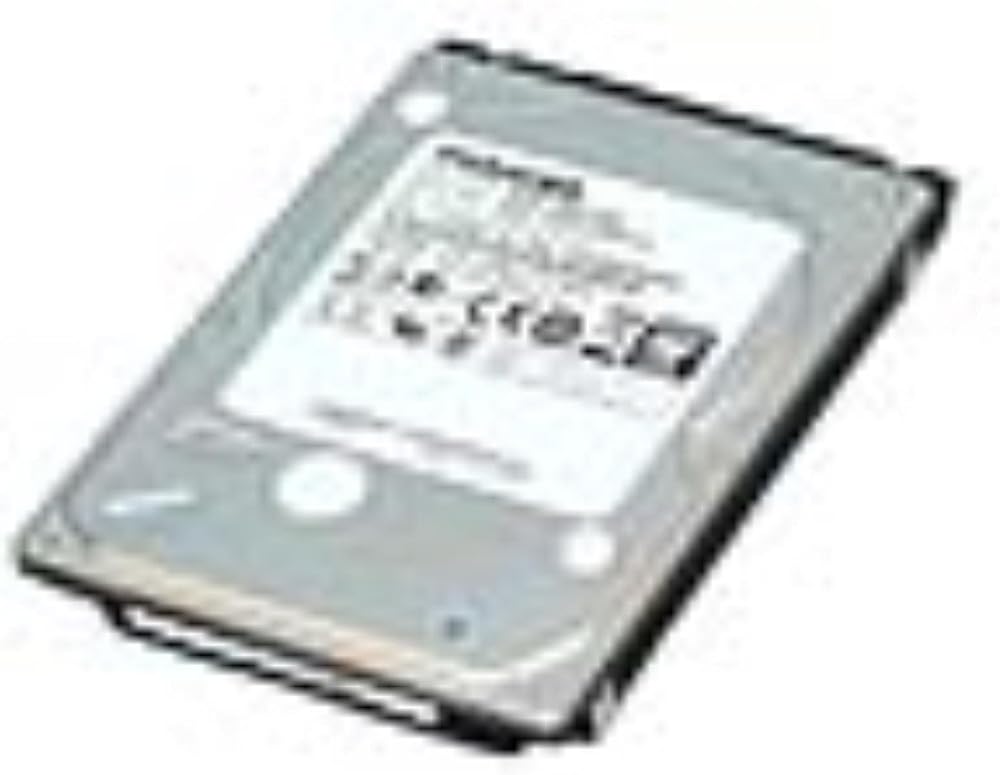

Toshiba 500GB 2.5" SATA 5400RPM 9.5mm Internal Hard Drive

Product Overview

The Toshiba MQ01ABD050 is a 500GB 2.5-inch internal hard drive designed for mainstream applications that require power efficiency and reliability. Featuring 5,400 RPM rotational speed and a slim 9.5mm height, this drive is ideal for portable multimedia and gaming notebooks, mobile workstations, and external storage solutions. Its advanced format technology and eco-conscious design contribute to excellent power efficiency and quiet operation.

Key Features

• Storage Capacity: 500GB
• Rotational Speed: 5,400 RPM
• Interface: SATA 3GB/s
• Form Factor: 2.5 Inch
• Height: 9.5mm
• Advanced Format: 512e
• Eco-conscious Design
• Quiet Operation: Ultra-silent with acoustic specifications of 19dBA (seek) and 17dBA (idle)
• Environmentally Friendly: Halogen-free and RoHS compatible

Specifications

Performance

• Track-to-track Seek: 2 ms
• Average Seek Time: 12 ms
• Rotational Speed: 5,400 RPM
• Average Latency: 5.55ms
• Buffer Size: 8MB

Power Requirements

• Voltage: 5V (+/- 5%)
• Spin up (start) Power: 4.5 watts
• Seek Power: 1.85 watts
• Read/Write Power: 1.5 watts
• Low Power Idle: 0.55 watts
• Standby Power: 0.18 watts
• Sleep Power: 0.15 watts

Physical Size

• Dimensions (W x D x H): 69.85 mm (2.75") x 100.0 mm (3.94") x 9.5 mm (0.37")
• Weight: 102 g (3.60 oz)

Environmental

• Operating Temperature: 5° to 55°C (41° to 131°F)
• Non-Operating Temperature: -40° to 65°C (-40° to 140°F)
• Operating Vibration: 9.8 m/s² (1.0G) 5 to 500 Hz
• Non-Operating Vibration: 49 m/s² (5.0G) 15 to 500Hz
• Operating Shock: 3,920 m/s² (400G) 2ms
• Non-Operating Shock: 8,820 m/s² (900G) 1ms

Acoustics

• Acoustics (idle): 17 dB
• Acoustics (seek): 19 dB

Box Contents

• Toshiba MQ01ABD050 500GB 2.5 inch Internal 5400rpm 9.5MM Hard Drive
