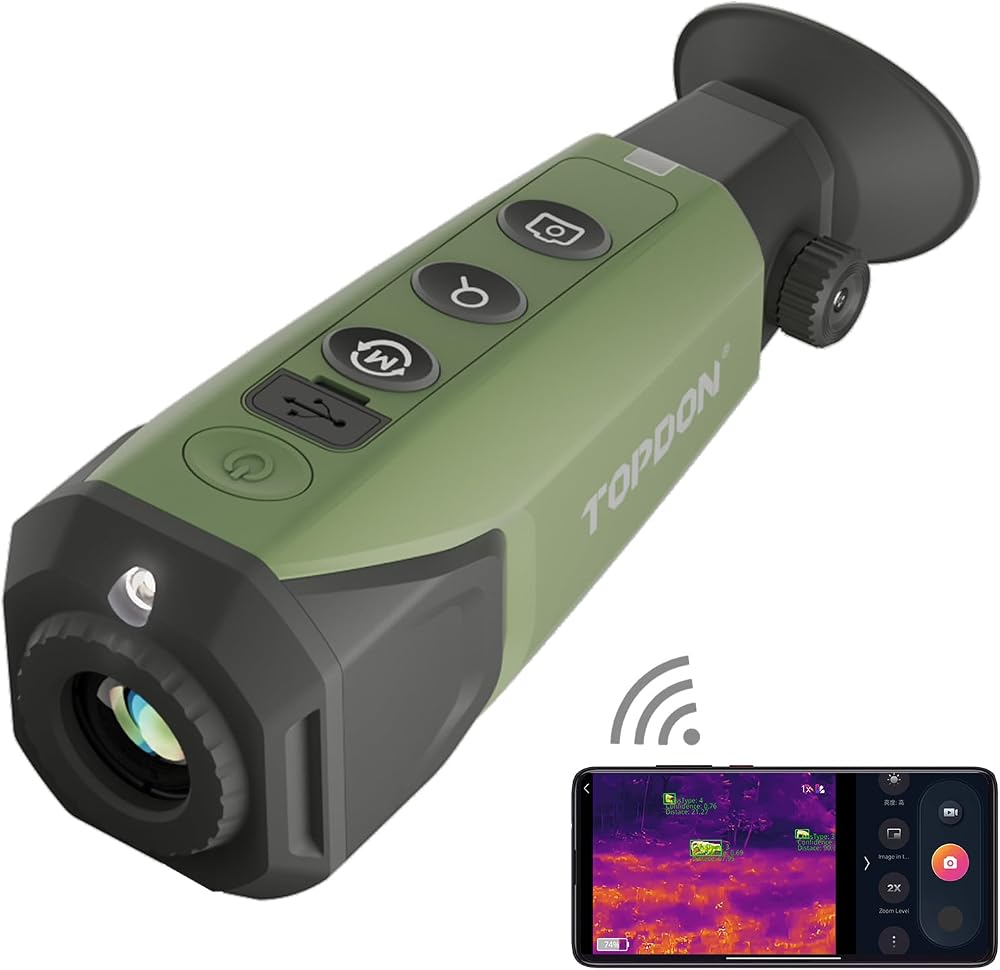

TOPDON TS004 Thermal Imaging Monocular 256x192 IR 50 Hz 410m 11h

Key Features

• TISR Image Enhancement technology enables up to 320x240 resolution from a 256x192 IR sensor.
• Refresh Rate 50 Hz for smooth thermal imaging.
• Color Modes Bird Watching, White Hot, Black Hot, Red Hot, and Fusion.
• Detection & Field of View 410 meters detection distance with 13.5° x 10.1° field of view; 13 mm lens.
• Digital Zoom 2x, 4x, and 8x for flexible viewing.
• Display & Storage 640x480 OLED display; 32 GB memory for photos and videos.
• Power & Runtime 5000 mAh battery up to 11 hours of continuous use.
• Connectivity Intelligent Wi-Fi connection for real-time monitoring; USB Type-C for fast data transfer and OTA upgrades.
• Build & Durability IP67 waterproof rating with rugged silicone case; drop resistant up to 2 m.

Specifications

• Brand: TOPDON
• Model: TS004
• Sensor: 256x192 IR sensor (up to 320x240 with TISR)
• Resolution: 320x240 (TISR enabled) / 256x192
• Refresh Rate: 50 Hz
• Display: 640x480 OLED
• Memory: 32 GB
• Battery: 5000 mAh, ~11 hours
• Lens: 13 mm
• Field of View: 13.50° x 10.10°
• Waterproof/Durability: IP67, drop resistant up to 2 m
• Weight & Size: 640 g; 21 x 10 x 9 cm

Overview

The TOPDON TS004 thermal imaging monocular delivers high-resolution thermal images in complete darkness, suitable for hunting, outdoor exploration, search and rescue, and agriculture. Wireless connectivity with a smartphone enables real-time monitoring, while the compact, ergonomic design supports one-handed operation.
