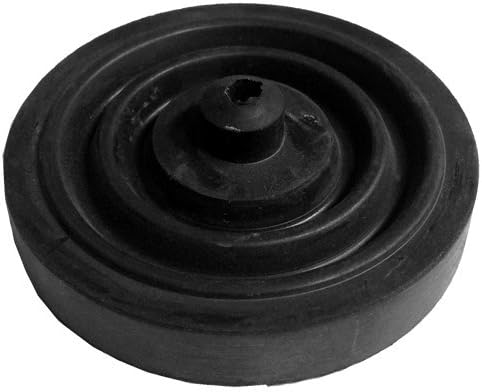

Thomas Dudley 318947 Pinto Pneumatic Flush Valve Bellows - Multi-Colour

Product Overview

This Thomas Dudley 318947 Pinto Pneumatic Flush Valve Bellows is a direct replacement part for the Thomas Dudley Pinto Pneumatic single flush valve. Over time, the bellows washer can develop small fractures due to constant expansion and contraction, preventing sufficient air pressure generation needed to lift the flushing assembly. Replacing this bellows can often resolve flushing issues without the need to purchase a complete flush valve assembly, potentially saving you money.

Symptoms of a Faulty Bellows

If your Thomas Dudley Pinto Pneumatic flush valve is not flushing properly, it may be due to insufficient pressure generation. This can be caused by a damaged bellows washer failing to retain air.

Troubleshooting Tip

To test if the bellows washer is the issue, disconnect the pneumatic tube attached to the push button. Blow down the tube. If the flush valve assembly does not lift properly while you are blowing, the bellows washer is likely the cause. If the valve lifts with ease, the issue may be with the push button itself.

Key Features

• Direct replacement for Thomas Dudley Pinto Pneumatic single flush valve.
• Resolves flushing issues caused by insufficient air pressure.
• Cost-effective solution to avoid replacing the entire flush valve.
• Designed for reliable performance and durability.

Specifications

• Brand: Thomas Dudley
• Part Number: 318947
• Product Type: Pneumatic Flush Valve Bellows
• Compatibility: Thomas Dudley Pinto Pneumatic single flush valve
• Colour: Multi-Colour
