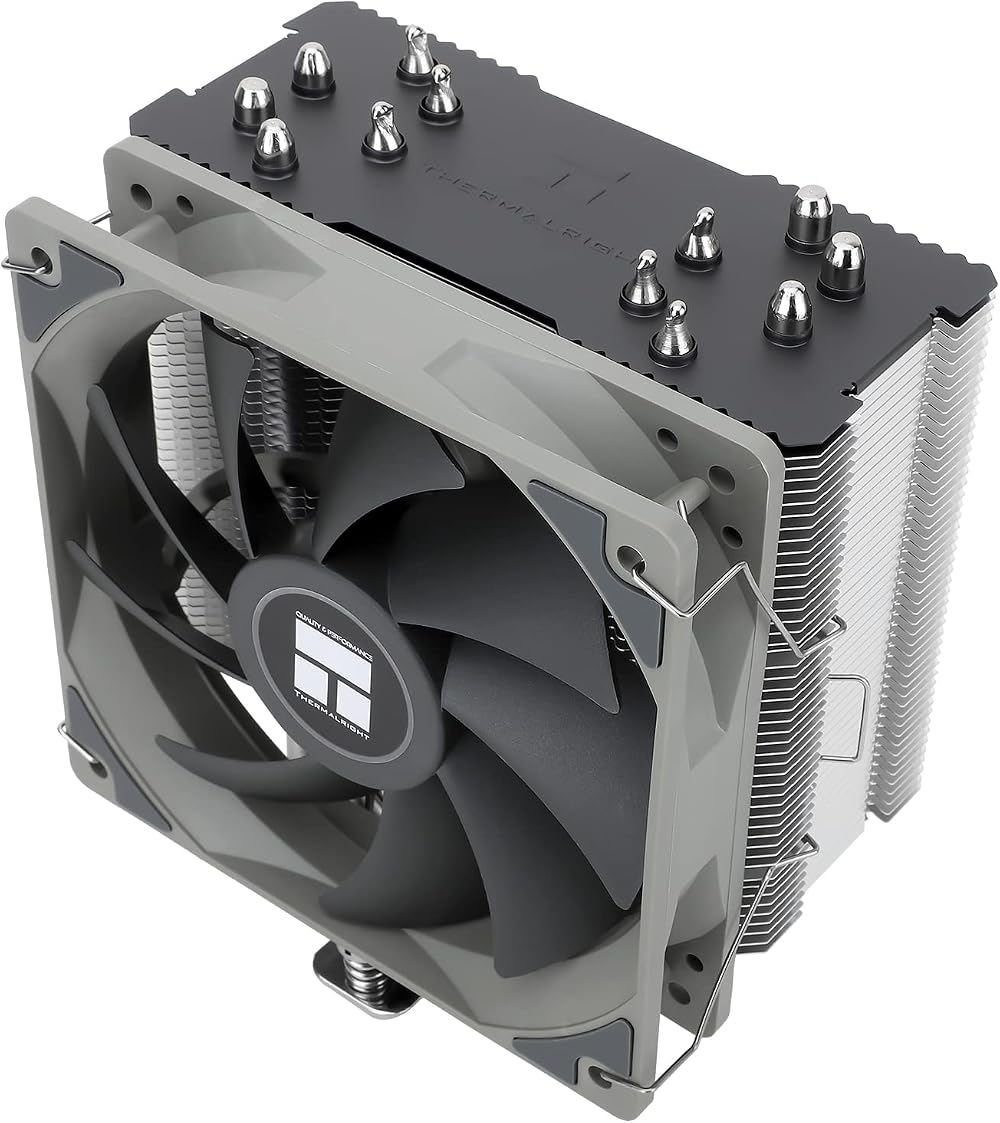

Thermalright BA120 CPU Air Cooler 6 Heat Pipes TL-C12C PWM Fan AM4 AM5 1700

About Thermalright

Thermalright is a Taiwanese brand with over 20 years of experience in the computer hardware market, recognized for its significant impact on the enthusiast community.

Key Features

• AGHP Technology: 6 x 6 mm heat pipes designed to counteract the effects of gravity in vertical or horizontal orientations, ensuring optimal heat dissipation.
• Long-lasting Performance: Features S-FDB bearings for the PWM fan, offering an industrial life of up to 20,000 hours and a long service life for the CPU cooler.
• Durable Construction: Constructed with UL class industrial grade PBT+PC safety insulation material for high-quality and reliable performance.
• Medium Case Compatibility: With a height of 154mm, it is designed to fit within most medium-sized computer cases.
• Quiet and Efficient Cooling: The TL-C12C PWM fan combines efficient airflow with low noise levels (≤25.6dB(A)) for a peaceful computing environment.

Specifications

• Model: Thermalright BA120
• CPU Cooler Dimensions: 124(L) x 77(W) x 154(H)mm (4.88 x 3.03 x 6.06 inches)
• Product Weight: 0.51 kg (1.12 lb)
• Heatsink Material: Aluminum
• Fan Model: TL-C12C
• Fan Dimensions: 120 x 120 x 25mm (4.72 x 4.72 x 0.98 inches)
• Fan Speed: 1550 rpm ± 10%
• Fan Connector: 4pin PWM
• Fan Voltage: 12V
• Max Airflow: 66.17 CFM
• Max Noise Level: 25.6 dB(A)

Compatibility

• Intel Sockets: 1150, 1151, 1155, 1156, 1200, 1700, 17XX
• AMD Sockets: AM4, AM5
• Mounting hardware for both Intel and AMD platforms is included for a secure installation.
