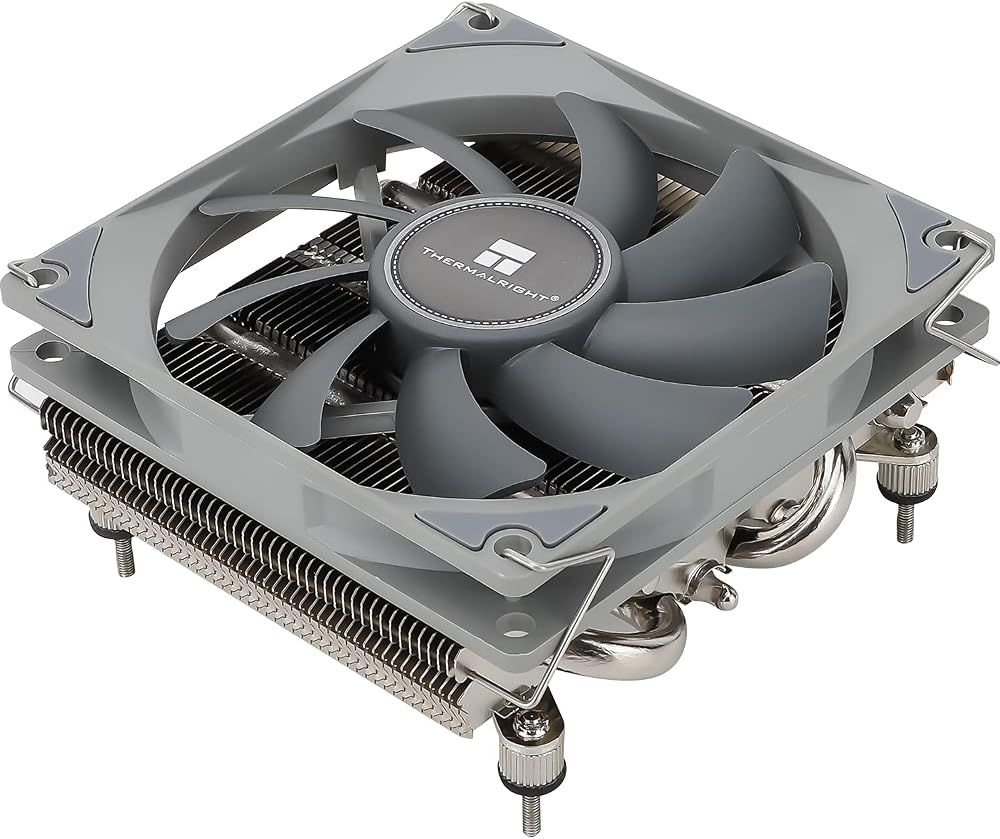

Thermalright AXP90-X36 Low Profile CPU Cooler 36mm AM4 AM5 LGA1700 115X PWM

About Thermalright

Thermalright is a Taiwan brand with over 20 years of experience in computer accessories. We focus on research and development, offering products like CPU cooler radiators, case fans, thermal silicone pads, thermal paste, and mounting brackets.

Key Features

• Ultra-Low Profile: With a total height of only 36mm, the AXP90-X36 is perfect for HTPC, ITX, and small form factor builds, ensuring no memory clearance issues.
• Quiet PWM Fan: Equipped with a 92mm TL-9015 PWM fan for automatic temperature control and quiet operation.
• AGHP Technology: Features 4x6mm heat pipes with AGHP technique to counteract inverted gravity effects, optimizing cooling performance. Secondary welding of heat pipes and fins further enhances heat dissipation.
• Wide Compatibility: Supports Intel LGA1700/1150/1151/1155/1156/1200 and AMD AM4/AM5 sockets. Includes necessary mounting hardware for easy installation.
• Includes Thermal Paste: Comes with heat transfer paste for optimal CPU cooling and improved thermal transfer.

Specifications

• CPU Cooler Size: 94.5 x 95 x 36mm
• Fan Model: TL-9015
• Air Volume: 42.58 CFM (MAX)
• Air Pressure: 1.33 mmH2O (MAX)
• Rotational Speed: 2700 RPM ± 10%
• Noise Level: 22.4 db(A)
• Fan Pin: 4PIN PWM
• Radiator Material: Aluminum
• Supported CPU Sockets: Intel: LGA1700/1150/1151/1155/1156/1200; AMD: AM4/AM5
