Tenda TEF1110P-8-102W 8-Port 10/100 PoE Gigabit Desktop Network Switch 63W/102W

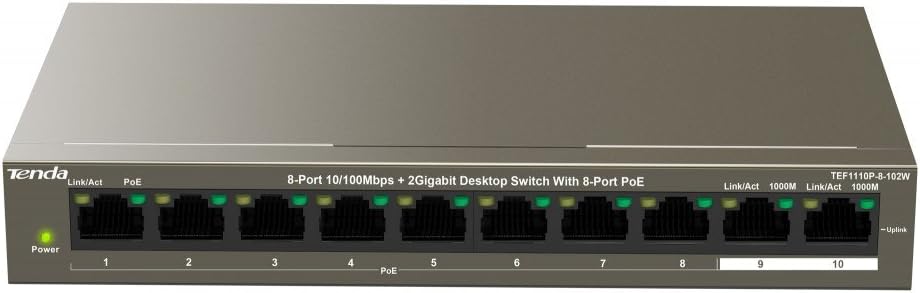

Tenda TEF1110P-8-102W PoE Network Switch

The Tenda TEF1110P-8-102W is an 8-port 10/100Mbps + 2-port Gigabit desktop PoE switch designed for efficient network connectivity. It offers 8 10/100 BASE-TX RJ45 ports and 2 10/100/1000 BASE-T RJ45 ports. Ports 1-8 are compliant with the IEEE 802.3at PoE standard, providing up to 15.4W per port, or the IEEE 802.3af PoE+ standard, delivering up to 30W per port. The total power output for the entire device is up to 99W. This switch enables simultaneous power and data transmission over CAT5 twisted pairs to devices such as Access Points, IP cameras, and IP phones.

Featuring 6kV lightning protection and the capability for 250m long-distance data transmission and powering, this switch simplifies deployment, reduces installation time, and lowers overall costs.

Key Features

• Ports: 8 x 10/100Mbps PoE RJ45, 2 x 10/100/1000Mbps Gigabit RJ45
• PoE Standard: IEEE 802.3at/af
• PoE Power Output: 15.4W per port (802.3at), 30W per port (802.3af)
• Total PoE Power Budget: Up to 99W
• Transmission Distance: Up to 250m for data and power
• Lightning Protection: 6kV
• Data Transmission: Supports power and data over CAT5 twisted pairs
• Device Compatibility: APs, IP Cameras, IP Phones, and more
• Form Factor: Desktop

Box Contents

• Switch
• Power Adapter
• Manual
