Tenda TEF1109P-8-102W 9-Port 100Mbps PoE Switch 802.3af/at 102W VLAN 6kV

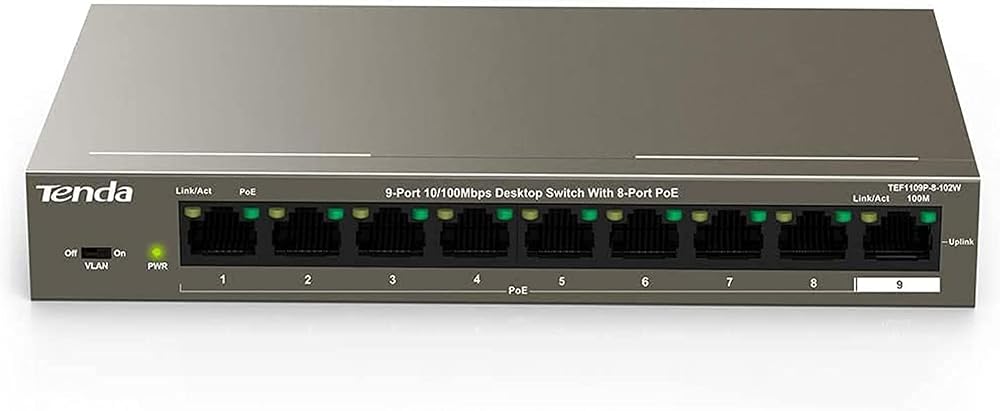

Tenda TEF1109P-8-102W Network Switch

The Tenda TEF1109P-8-102W is a 9-port 100Mbps Ethernet network switch designed for efficient power delivery and network management. It features 8 Power over Ethernet (PoE) ports, compliant with IEEE 802.3af and 802.3at standards, providing up to 102W total PoE power output. This switch is ideal for powering devices such as Access Points, IP cameras, and IP phones over CAT5e cables.

Key Features

• 9 x 10/100M RJ45 Ports
• 8 x PoE Ports: Compliant with IEEE 802.3af (15.4W max per port) and 802.3at (30W max per port) standards
• Total PoE Power Output: 102W
• Simple Management Modes: Standard and VLAN modes selectable via hardware DIP switch
• 6kV Lightning Protection: Protects connected devices from electrical surges
• Extended Transmission Distance: Up to 250m on CAT5e cables
• Store & Forward Architecture: Ensures reliable data transmission
• MAC Address Learning: Supports 2K MAC address list with auto-learning and ageing
• Flow Control: Supports 802.3x full-duplex flow control and half-duplex backpressure
• Auto MDI/MDIX: Automatically detects cable type
• Fanless Design: Quiet operation

Specifications

• Brand: Tenda
• Model: TEF1109P-8-102W
• Number of Ports: 9 x 10/100M RJ45
• PoE Standards: IEEE 802.3af, IEEE 802.3at
• Max PoE Power Output: 102W (Total)
• Lightning Protection: 6kV
• Transmission Distance: Up to 250m
• Management Modes: Standard, VLAN

This switch is a versatile solution for small to medium-sized businesses, hotels, and offices requiring reliable HD surveillance and wireless networking infrastructure.
