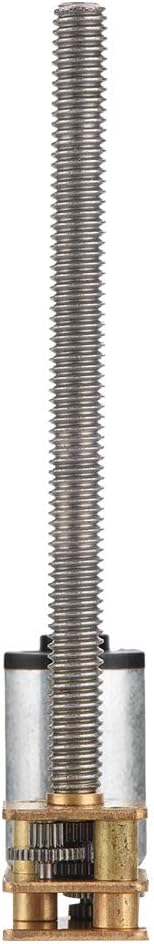

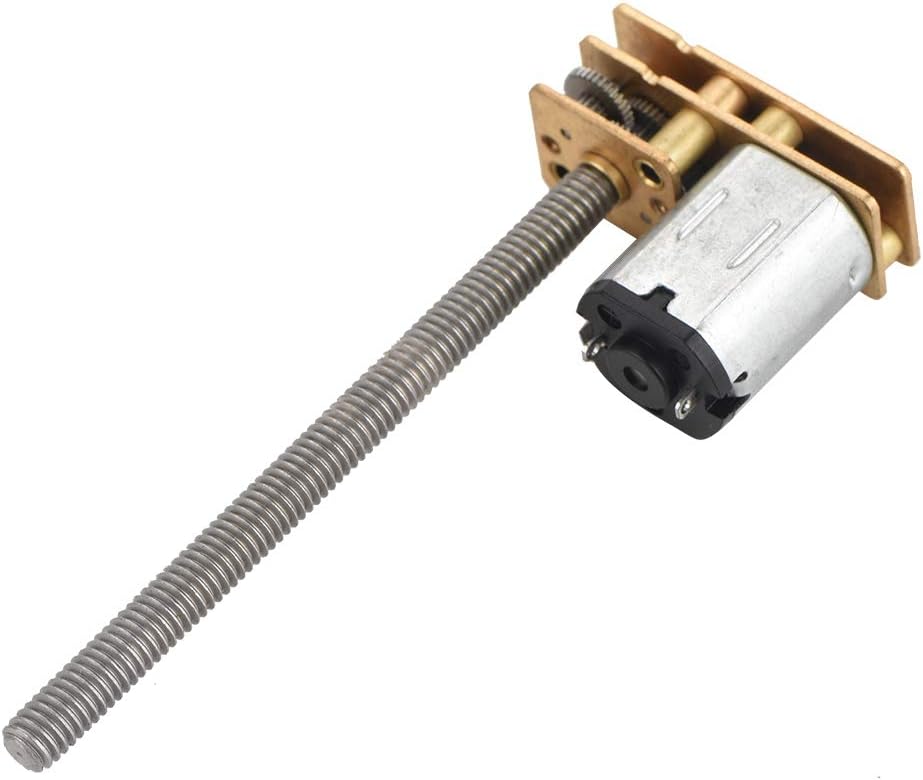

Wandisy DC Gear Motor 6V 30RPM 2W Micro Reduction Motor M4x55mm Shaft for RC

Wandisy DC Gear Motor

This Wandisy DC gear motor is designed for various DIY projects, robotics, RC cars, and toy engines. It features a speed reduction mechanism for precise control and a durable construction.

Specifications

• Brand: Wandisy
• Rated Power: 2W
• Optional Types: 6V 30RPM, 6V 60RPM, 6V 100RPM, 6V 150RPM, 6V 200RPM, 6V 1000RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM
• Output Shaft Length: 55mm / 2.2inch
• Shaft Type: M4 Thread
• Size: Approximately 6.5*2.5cm / 2.6*1in
• Weight: Approximately 18g / 0.6oz

Performance Data (Example for 6V 30RPM):

• Gear Ratio: 1:298
• No Load Speed: 30RPM (≤20mA)
• Load Speed: 23RPM (≤40mA)
• Load Torsion: 440gf.cm (≤1.1A)
• Stall Torsion: 3.3kgf.cm

Please refer to the detailed specification table in the product images for specific performance data of other available RPM and voltage options.

Package Includes:

• 1 x Gear Motor

Note: Please allow for small size errors due to manual measurement. Your understanding is appreciated.
