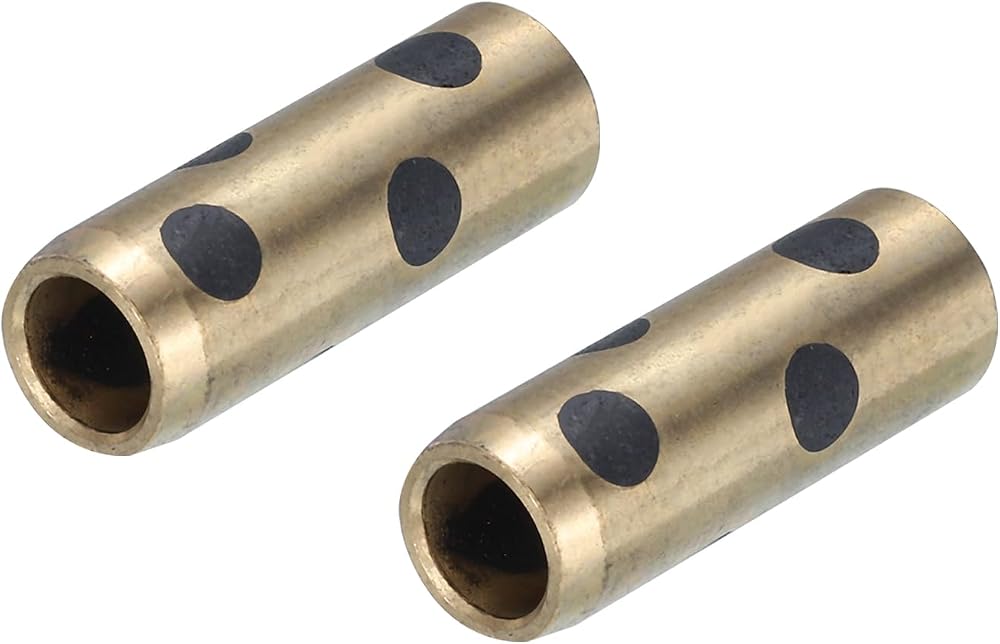

sourcing map Sleeve Bearings 5mm Bore 7mm OD 20mm H Brass Graphite Oilless

Product Overview

These bearing sleeves, also known as plain bearings or bushings, are designed to guide or reduce friction in linear applications. They are self-lubricating and do not require oiling due to their construction of cast brass fitted with graphite.

Applications

Bearing sleeves are utilized in various industrial equipment, including electrical equipment, household equipment, printing presses, and machine tools. They are suitable for applications with rotary motion and offer self-lubricating properties for material lubrication.

Key Features and Advantages

• Self-Lubricating: Made with graphite, eliminating the need for oil.
• Durable Material: Constructed from cast brass, providing good load capacity and wear resistance.
• High-Speed Capability: Suitable for high sliding speeds, even in high temperature and corrosive environments.
• Reinforced Housing: Provides reinforced housings for shafts or fasteners.
• Versatile Use: Helps reduce bore size or replace worn original bushings on wheels.

Specifications

• Brand: sourcing map
• Bore Diameter: 5mm (0.2 Inch)
• Outside Diameter: 7mm (0.28 Inch)
• Height: 20mm (0.79 Inch)
• Material: Brass + Graphite
• Color: Copper + Black
• Quantity: 2 x Sleeve Bearing

Installation

These sleeve bearings can be pressed in using a vise or punch. They can be secured in place with adhesives or locking screws.

Important Note

Please note that this product is measured manually, and there may be a slight error. Please refer to the actual product for precise dimensions.
