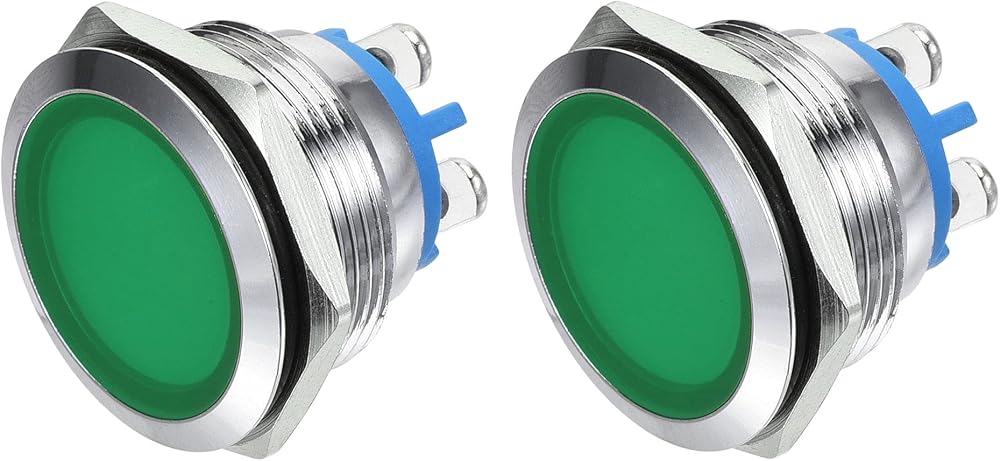

sourcing map 22mm Green LED Indicator Light 12V M22 Panel Mount Metal

Product Overview

This panel mount indicator light features a round flat-head design with a durable brass metal shell and an integrated LED lamp. It is ideal for use as a signal indicator replacement on industrial machinery, aircraft or ship dashboards, amusement equipment, and household appliances.

Key Features

• Material: Nickel Plated Copper, PA66 Nylon
• Light Color: Green
• Waterproof Rating: IP65
• Rated Voltage: AC/DC 12V
• Mounting Hole Diameter: 22mm / 0.87"
• Thread Size: M22x1
• Energy-saving and low power consumption
• Waterproof, dustproof, shock resistant, and corrosion-resistant
• Durable with a long service life

Specifications

• Maximum Working Current: 20mA
• Fit Panel Max Thickness: 7mm / 0.28"
• Body Size: 25x24.8mm / 0.98"x0.98" (Length x Head Diameter)
• Package Content: 2 x LED Indicator Light (with O-Ring)

Installation

The nut is designed for easy tightening. Use with the included O-ring for enhanced waterproofing.

Important Notice

Please ensure the power supply voltage matches the rated voltage of the light (AC/DC 12V).
