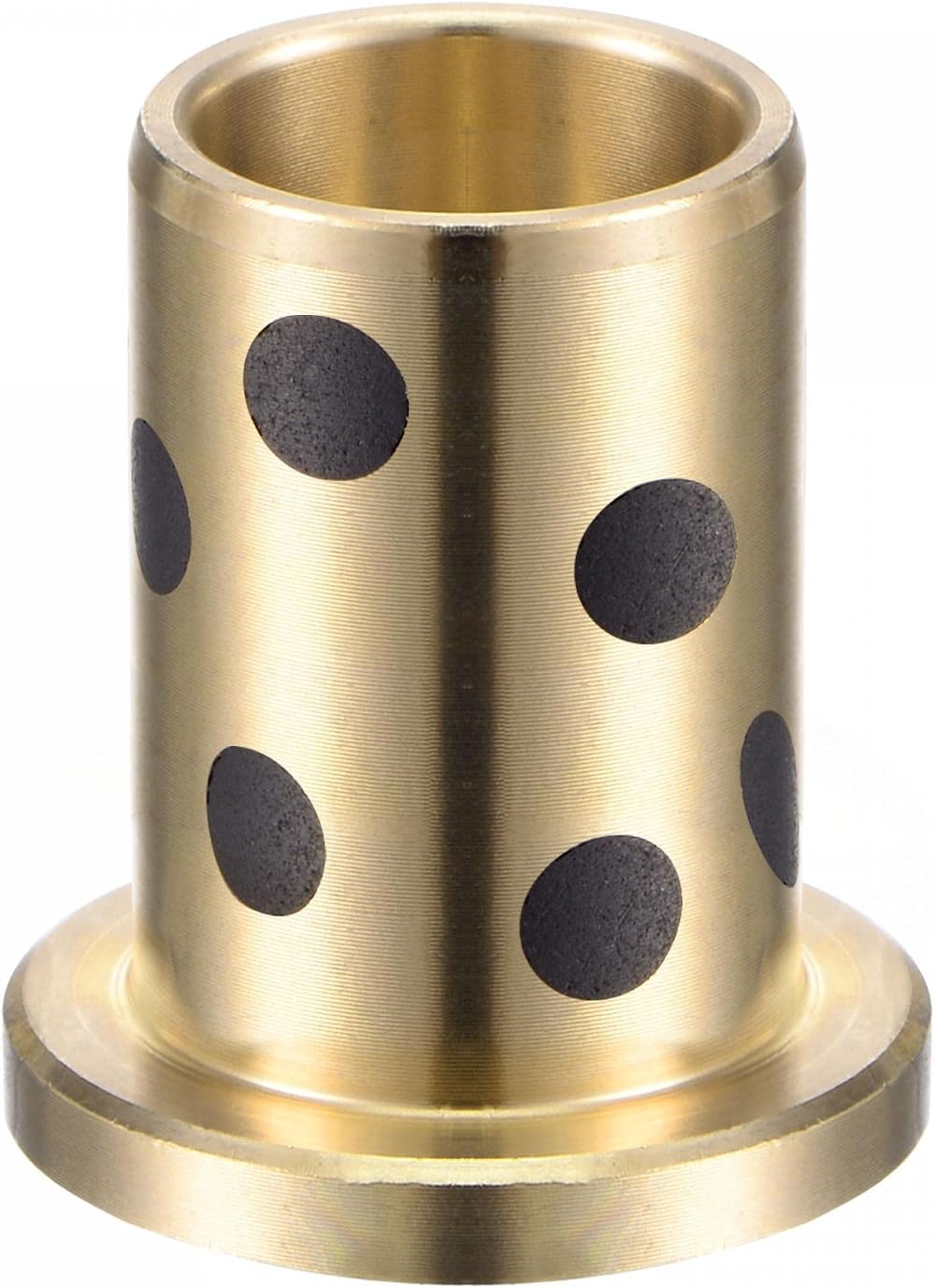

sourcing map Flanged Sleeve Bearing 12mm Bore Brass Wrapped Oilless Bushing

Product Overview

This sourcing map flanged sleeve bearing is a self-lubricating oilless bushing made from cast brass and fitted with graphite for reduced friction and wear resistance. It is designed for linear guidance and load-bearing applications in various industrial settings.

Key Features

• Self-Lubricating: Graphite-impregnated brass material eliminates the need for external lubrication.
• Durable Material: Made of cast brass for good load capacity and wear resistance.
• Oilless Operation: Wrapped oilless bushing design.
• Flanged Design: Provides secure mounting and axial constraint.

Specifications

• Brand: sourcing map
• Bore Diameter: 12mm
• Outside Diameter: 15mm
• Total Length: 25mm
• Flange Diameter: 21mm
• Flange Thickness: 3mm
• Material: Cast Brass with Graphite

Applications

Ideal for use in various industrial equipment, including electrical equipment, household equipment, printing machines, and machine tools.

Installation Notice

These bearings are typically pressed into place using a vise or punching machine. They can be further secured with adhesives or locking screws.
