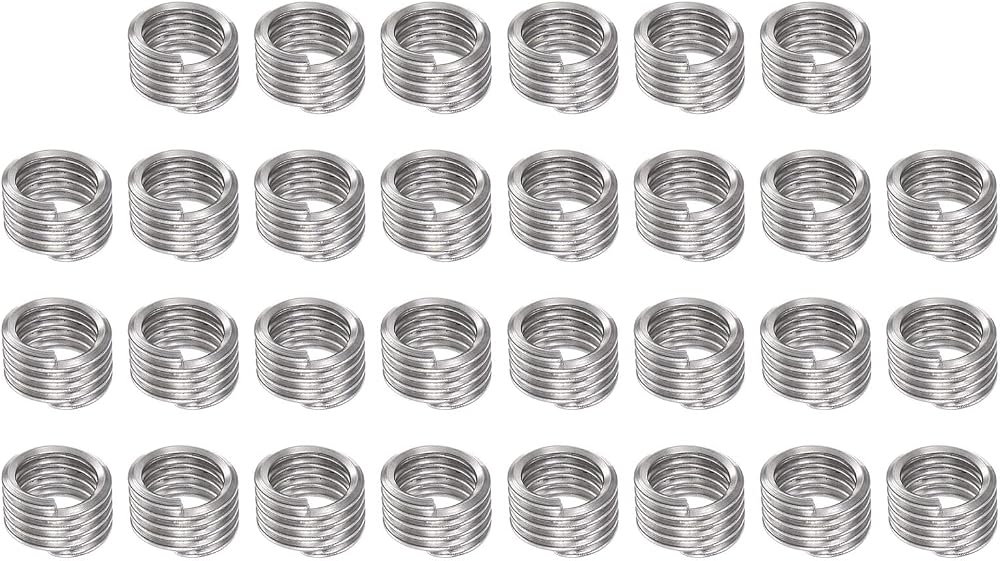

sourcing map 30pcs 3/8-16 UNC Wire Thread Inserts 9.5mm 1D 304 Stainless Steel

Product Overview

This set includes 30 high-quality helical coiled wire thread inserts manufactured by sourcing map. Made from durable 304 stainless steel, these inserts are designed to enhance the strength and wear resistance of threaded connections in various materials. They offer self-tapping capability and strong resistance to vibration.

Specifications

• Thread Size: 3/8-16 UNC
• Effective Length (after Installation): 1D = 9.5mm / 0.37"
• Free State Length: 8mm / 0.31"
• Free State Outer Diameter: 11.5mm / 0.45"
• Type: Helical
• Material: 304 Stainless Steel
• Surface Treatment: White Washing

Key Features

• Material Properties: 304 stainless steel provides excellent corrosion resistance, rust prevention, high hardness, and oxidation resistance. It is austenitic and non-magnetic or slightly magnetic.
• Installation Benefits: Designed with elasticity to provide an even load distribution.
• Self-Tapping: Feature self-tapping capability without the need for pre-tapping the base metal.
• Strong Connection: Offer a large contact surface with finished products for strong tensile force.
• Durability: Provide strong resistance to vibration and are designed for no deformation.

Applications

These wire thread inserts are primarily used for various low-strength metal and non-metal materials, including:

• Aluminum
• Magnesium
• Cast Iron
• Plastic
• Rubber
• MDF
• Ceramics
• Fiberglass
• Wood

They are ideal for improving the strength and wear resistance of threaded connections, effectively preventing thread loosening and slippage.

Installation Note

For small installation quantities, a method involving the corresponding bolts and nuts can be used. Fix the thread insert onto the screw, secure it with a nut of the same type to create a 'three-in-one' unit. Then, use a wrench to screw the threaded insert into the bottom hole and remove the screw.
