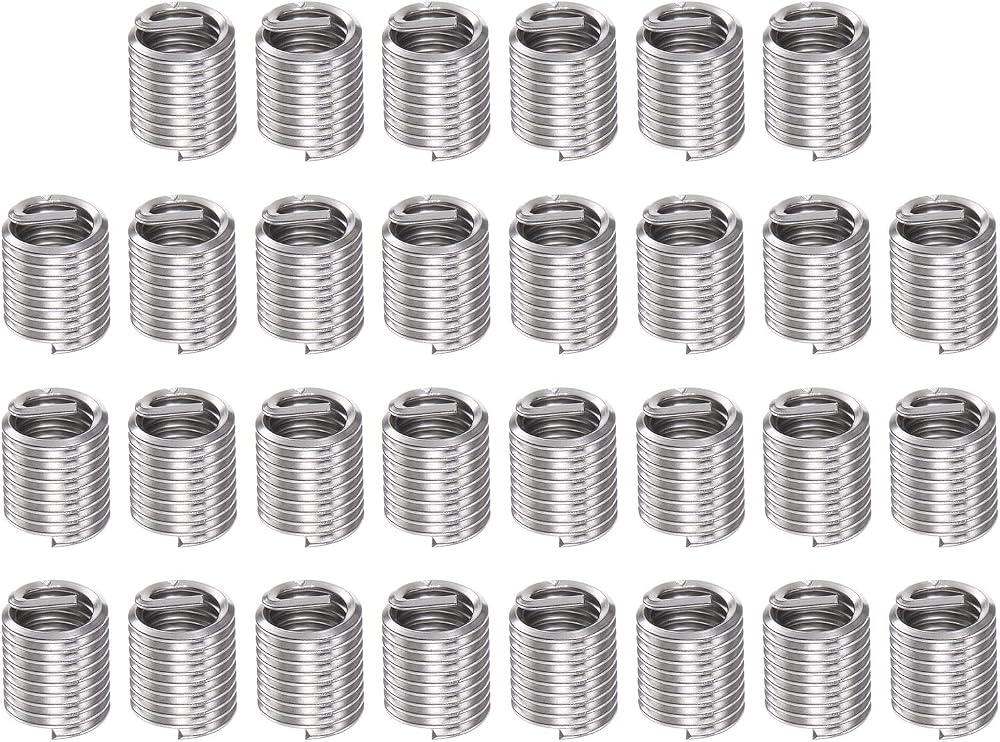

sourcing map 30pcs Wire Thread Inserts 1/4-20 UNC 2D 304 Stainless Steel

Product Overview

This pack contains 30 sourcing map helical wire thread inserts made from durable 304 stainless steel. They are designed to reinforce threaded connections in various materials, providing enhanced strength and wear resistance.

Key Features

• Self-Tapping Capability: No pre-tapping of the base metal required.
• Enhanced Strength: Improve the strength and wear resistance of threaded connections.
• Vibration Resistance: Strong resistance to vibration without deformation.
• Material: Constructed from 304 stainless steel for excellent corrosion, rust, and oxidation resistance.
• Even Load Distribution: Designed with elasticity to provide an even load across the connection.

Specifications

• Brand: sourcing map
• Thread Size: 1/4-20 UNC
• Effective Length (Installed): 2D = 12.7mm / 0.5"
• Free State Length: 11mm / 0.43"
• Free State Outer Diameter: 7.9mm / 0.31"
• Type: Helical
• Material: 304 Stainless Steel
• Surface Treatment: White Washing

Applications

Ideal for low-strength metal and non-metal materials including aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, and wood.

Installation Note

For small installation quantities, fix the thread insert onto a bolt with a corresponding nut, creating a "three-in-one" assembly. Screw the insert into the tapped hole using a wrench and then remove the bolt.
