Solar PoE Switch UPS Charge Controller 5 Port 24V Camera Network

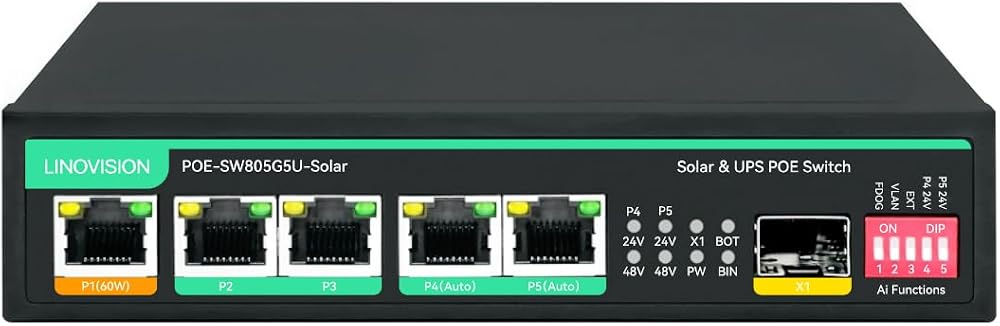

LINOVISION Solar PoE Switch with Built-in Solar Charge Controller

This industrial PoE switch is designed for non-stop power supply in demanding environments. It features a built-in solar charge controller, battery management, and external DC charging capabilities, making it ideal for powering security cameras, wireless bridges, LED lights, and other PoE devices directly from solar panels and batteries.

Key Features

• Solar PoE Switch: Works directly with PV solar panels (Max. 300W) and batteries for continuous PoE power.
• Five PoE Outputs: Port 1 offers 802.3bt PoE++ 60W output; Ports 2-3 provide PoE+ 30W output; Ports 4-5 support PoE+ 30W or Passive 24V PoE output. Total PoE budget is 65W.
• Battery Management: Compatible with Lead acid, LiFePO4, and Ternary Lithium batteries.
• UPS PoE Switch: Supports external DC input (DC 15V ~ 36V) for flexible and uninterrupted power supply from external power, solar, or battery.
• Passive PoE 24V Output: Ports 4 and 5 can be configured for Passive PoE 24V mode, suitable for wireless bridges or APs.
• Industrial Design: Built for harsh environments (-4 ℉ to 140 ℉) with a fanless metal enclosure and 6KV surge protection.

Specifications

• Brand: LINOVISION
• PoE Output Ports: 5
• PoE Standards: 802.3bt PoE++, PoE+
• Passive PoE Voltage: 24V
• Total PoE Budget: 65W
• Solar Panel Input: Max. 300W
• Battery Compatibility: Lead acid, LiFePO4, Ternary Lithium
• External DC Input: DC 15V ~ 36V
• Operating Temperature: -4 ℉ to 140 ℉ (-20 ℃ to 60 ℃)
• Surge Protection: 6KV
• Enclosure: Fanless Metal
