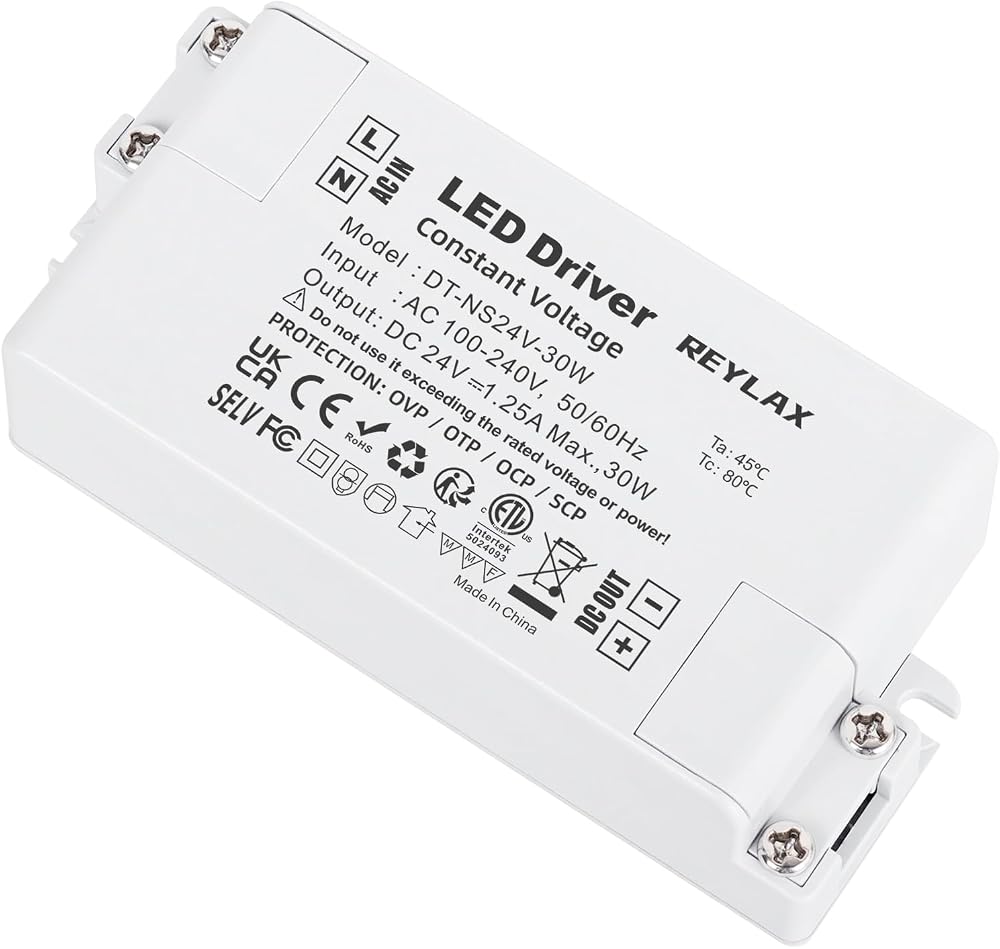

REYLAX 24V DC LED Driver 30W 1.25A Constant Voltage Transformer

Key Features

• Brand: REYLAX
• Output: 24V DC, 30W, 1.25A
• Input: AC 100-240V, 50/60Hz
• Type: Class II constant voltage LED driver
• Construction: Compact low profile housing with IP44 protective cover
• Protection: Over current, over voltage, thermal overload, short circuit
• Applications: Suitable for LED strips, lamps, cabinet lighting, panels and more
• Note: Ensure load remains below 80% of maximum capacity for optimal efficiency

Specifications

• Model: REYLAX LED Driver
• Output Voltage: 24V DC
• Maximum Power: 30W
• Output Current: 1.25A
• Input Voltage: 100-240V AC
• Frequency: 50/60 Hz
• Certification: Class II, IP44 housing

Description

REYLAX LED Driver provides a constant voltage 24V DC output suitable for LED strips and other constant voltage lighting projects. Designed for easy installation with safe, low voltage operation and built-in protection features to guard against over current, over voltage, thermal overload and short circuits. The compact design is ideal for DIY lighting installations, with moisture and dust protection from the IP44 housing.

Technical notes: This driver is designed for constant voltage LED lighting and is not compatible with dimmable or color-changing lighting products. To maximize efficiency, keep the load under 80% of the rated 30W capacity.
