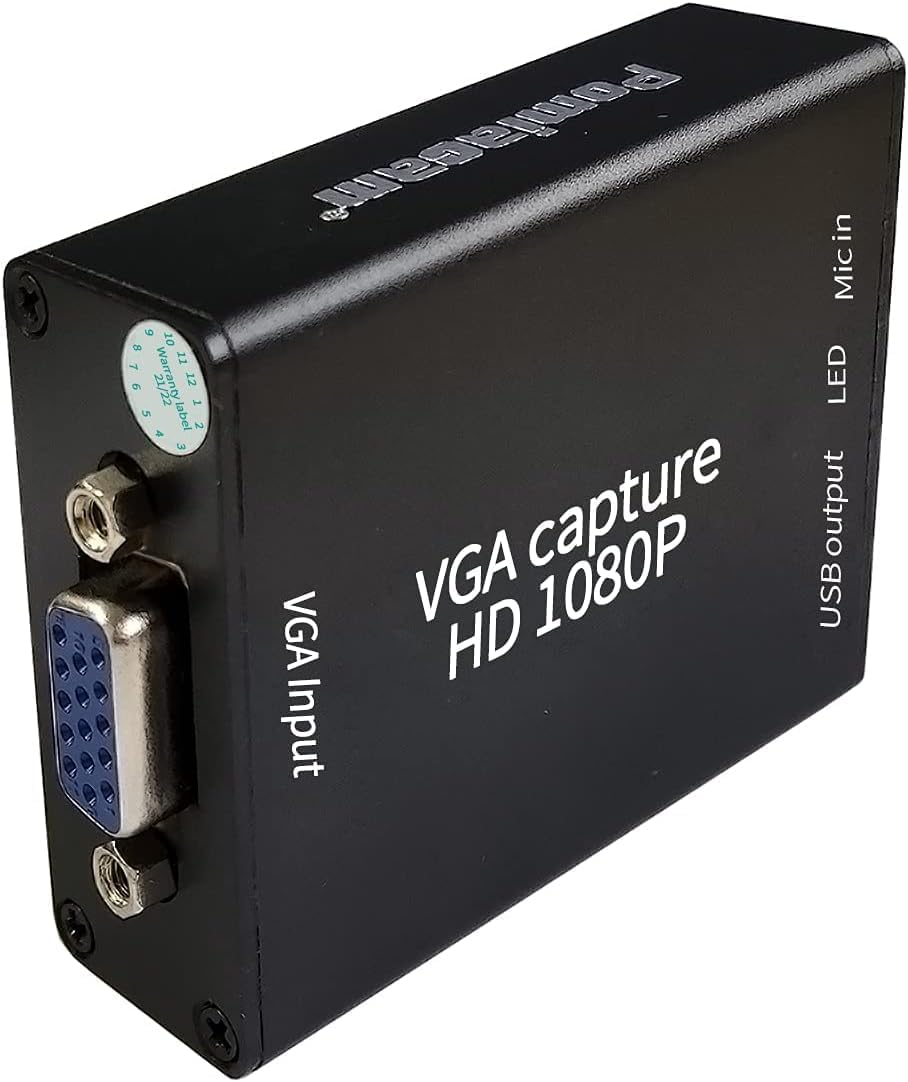

POMIACAM VGA to USB 2.0 Capture Card HD 1080P Audio Video Converter Plug Play

POMIACAM VGA Video Capture Card - HD 1080P Converter

This POMIACAM VGA capture card converts VGA signals to USB 2.0 for seamless video and audio capture. Ideal for medical equipment, video conferencing, education, and computer signal acquisition. It allows for collection and recording of VGA video through computers and notebooks, with synchronized microphone audio input.

Key Features

• Input: VGA
• Output: USB 2.0
• Video Resolution Support: Up to 1920x1080
• Frame Rate: 5-60 frames adjustable
• Audio/Video Capture: Standard UVC/UAC
• Driver: Plug and Play, no driver installation required
• Compact Design: 64MM x 51MM x 21MM, 60g weight
• Operating Temperature: -20 to 65 degrees Celsius
• Working Humidity: 5% to 90%

How to Use

1. Connect your VGA signal source to the capture card's VGA input port.
2. Connect the capture card's USB output to your computer's USB port using a USB cable (driver-free).
3. For audio input, connect your audio signal to the 'Mic in' port.
4. Open your acquisition software on the computer, select the device 'AFN_Cap video' to activate. The red LED light will flash upon successful signal acquisition.

Specifications

• Brand: POMIACAM
• Input Port: VGA
• Output Port: USB 2.0
• Video Output Resolutions: 1920*1080, 1600*1200, 1360*768, 1280*1024, 1280*960, 1280*720, 1024*768, 800*600, 720*480, 720*576, 640*480
• Frame Rate: 5~60 frames adjustable
• Audio and Video Capture Standard: UVC/UAC
• Driver: Drive-free, Plug and Play
• Operating Temperature: -20~65?
• Working Humidity: 5%-90%
• Dimensions: 64MM x 51MM x 21MM
• Weight: 60g
