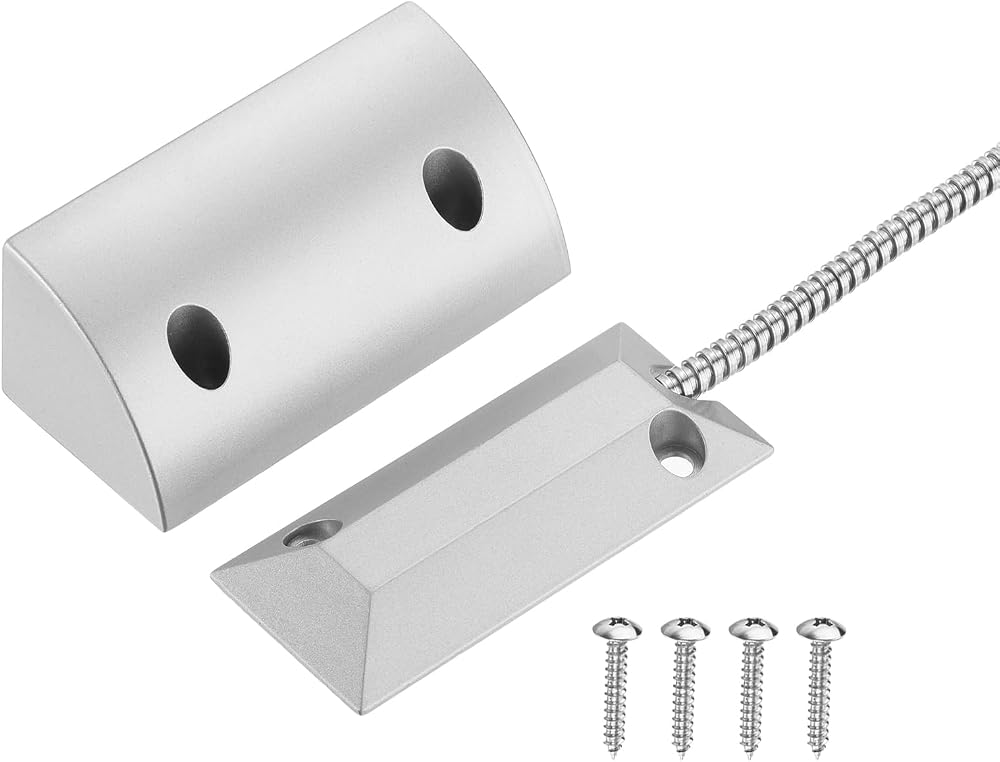

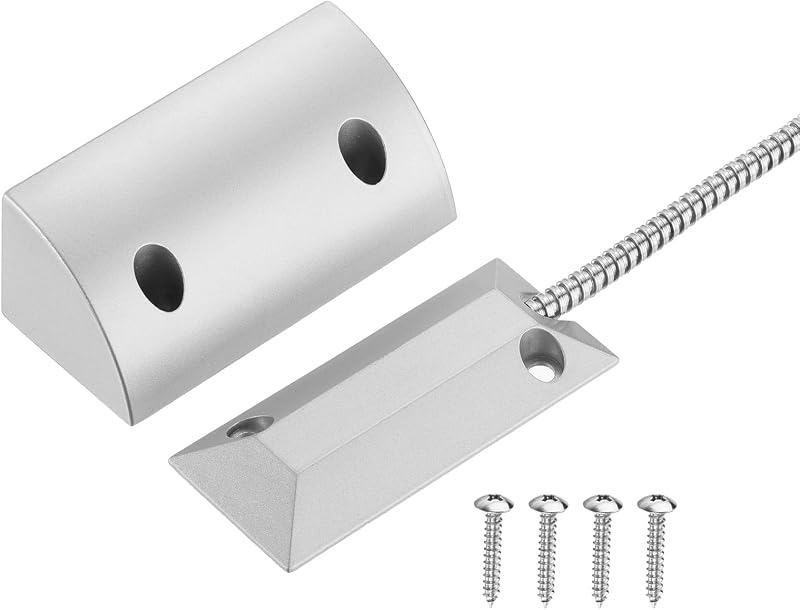

PATIKIL Garage Door Magnetic Reed Switch NO Sensor w/ Adjustable Bracket Zinc

Product Overview

This PATIKIL wired surface-mounted door contact is designed for reliably detecting the opening and closing of garage doors and rolling doors. Constructed from durable zinc alloy, it provides long-lasting security and monitoring.

Key Features

• Contact Type: Normally Open (NO)
• Wire Diameter: 55cm
• Sensor Size: 87.5mm x 37.5mm (L*W)
• Magnet Size: 87.5mm x 35mm (L*W)
• Sensing Distance: 50mm-70mm
• Material: Zinc Alloy
• Design: Wired surface-mounted for easy installation
• Functionality: Door monitoring to help prevent unauthorized entry and theft
• Compatibility: Suitable for garage doors and rolling doors

Specifications

• Brand: PATIKIL
• Contact Type: Normally Open (NO)
• Wire Length: 55cm
• Sensor Dimensions: 87.5mm x 37.5mm (Length x Width)
• Magnet Dimensions: 87.5mm x 35mm (Length x Width)
• Sensing Range: 50mm to 70mm
• Construction Material: Zinc Alloy

Installation Instructions

For proper installation, mount the sensor onto the interior frame of the door and the magnet onto the door itself. Ensure correct alignment between the sensor and the magnet for optimal performance.

Package Contents

• 1 x Sensor
• 1 x Magnet
• 4 x Screws
