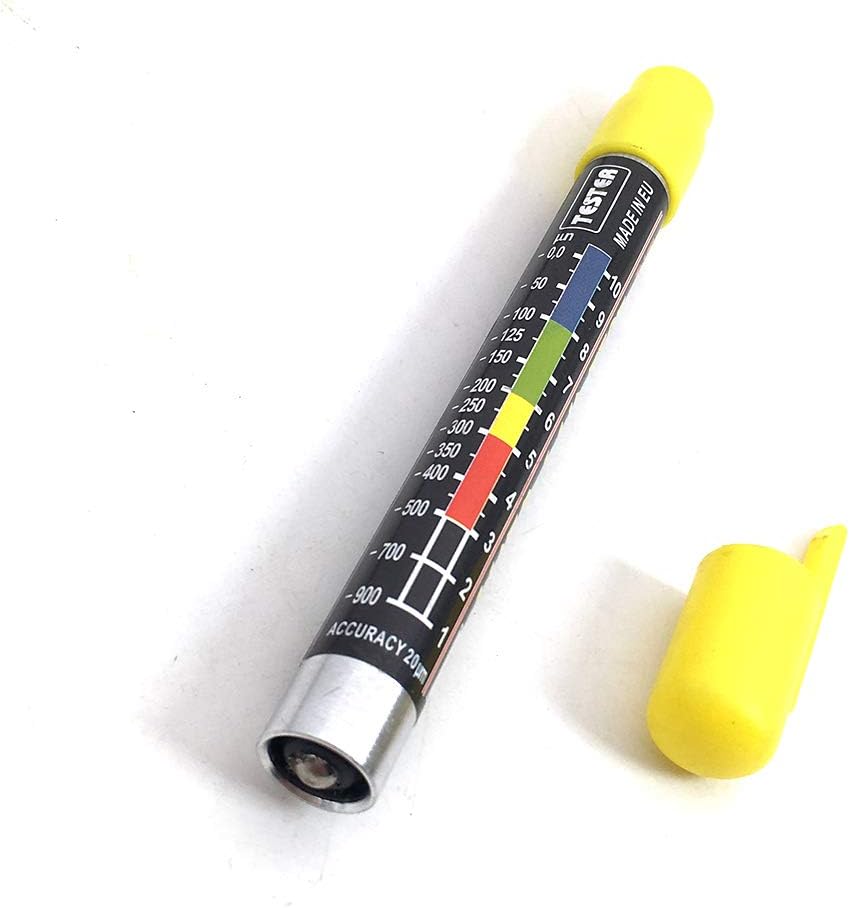

KOET Pen Paint Thickness Gauge Tester Meter Magnetic Tip Waterproof Micron

Paint Thickness Gauge

The KOET Pen-Type Paint Thickness Gauge is a waterproof and battery-free tester designed for verifying the paint thickness on vehicles. Its magnetic tip allows for easy access to curved and hard-to-reach surfaces, making it ideal for detailed inspections, even in challenging conditions like rain or on a dirty car.

Key Features

• Magnetic Tip: Convenient for reaching curved and difficult areas.
• Waterproof: Usable in the rain and on dirty vehicles; no batteries required.
• Micron-Level Color Scale: Provides accurate readings for identifying original paint, repairs, or hidden damage.
• Pen-Type Design: Compact and portable for easy carrying and preparedness.
• High Accuracy: Compatible with digital thickness gauges for precise measurements.
• Quick Vehicle Inspection: Quickly determine if a vehicle has been repainted, involved in an accident, or if the lacquer is original.

Specifications

• Material: Plastic, metal, magnet
• Color Scale Interpretation:
  • Blue: 0-100 microns (thin layer of varnish, no foundation or re-polished varnish)
  • Green: 100-200 microns (original varnish)
  • Yellow: 200-300 microns (repaired surface, second varnish)
  • Red: 300-520 microns (repaired metal plate + second layer of varnish)
  • Black: Over 520 microns (putty and varnish surface, approximately 0.5mm putty)

Package Includes: 1 x Paint Thickness Tester
