Oikabio ST416 SM750 MiniPCIe Dual VGA 16MB+64MB DDR Graphics Card 1920x1440

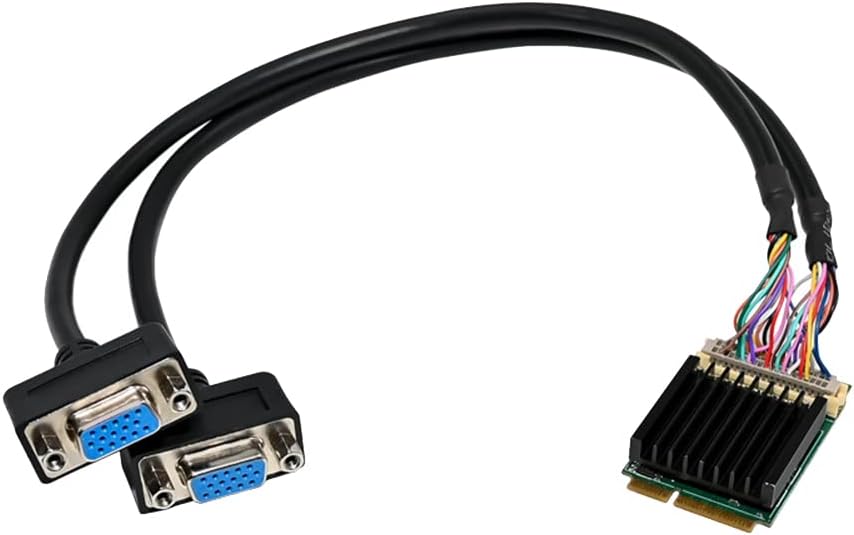

Oikabio ST416 SM750 MiniPCIe Graphics Card

This Oikabio ST416 SM750 MiniPCIe graphics card offers integrated 2D graphics for various application needs. Designed for low power consumption, it features dual VGA outputs and supports high resolutions.

Key Features

• Graphic Engine: 2D
• Host Interface: MiniPCIe
• Built-in Memory: 16MB DDR
• External Memory: Up to 64MB DDR (Max)
• Maximum Resolution: 1920 x 1440
• Low Power Consumption: Less than 1.5W
• Display Support: Supports multiple cost-effective displays/panels
• DACs: Supports dual 300MHz DACs
• Color: Green+Black
• Material: PCB+Metal

Specifications

• CPU Platform Support: for Intel, for AMD, ZFMicro, Freescale, AMCc, STMicro, Marvell, PCIe
• Processor Architecture Support: x86 processors, ARM, MIPS, and ARC processors
• Memory Configuration: Built-in 16MB DDR (32-bit I/F) + 16MB external DDR (32-bit I/F)
• External Memory Interface: 64-bit I/F
• Operating Temperature: -40℃ to +85℃
• PCI Express Architecture: x1

Operating System Support

• Win CE
• Win XP
• Win 7
• Win 2003 (32bit/64bit)
• Win 2008 (32bit/64bit)
• Linux Enterprise (32bit/64bit)
• CentOS
• Debian
