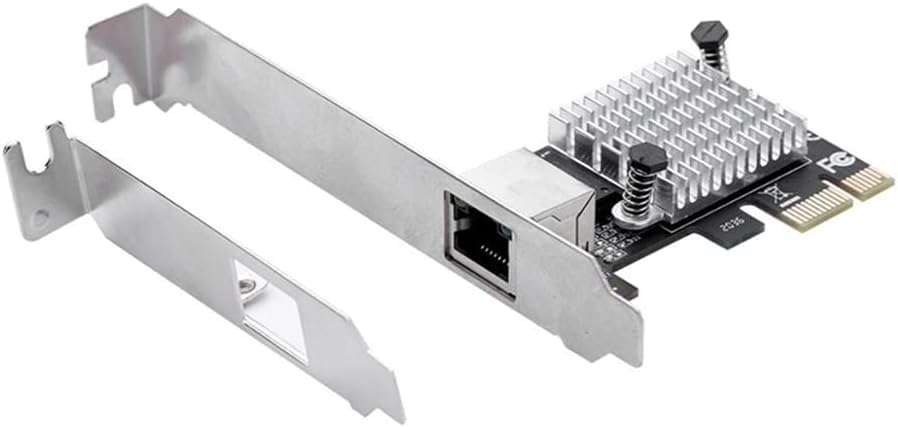

Oikabio PCIe x1 Network Card 2.5G Gigabit Ethernet Adapter 1 Port RJ45

Upgrade your network with the Oikabio PCIe x1 Network Card, providing high-speed 2.5 Gigabit Ethernet connectivity. This adapter offers reliable performance for desktops, servers, and workstations, enhancing your data transfer speeds and network efficiency.

Key Features

• 2.5 Gigabit Ethernet: Supports IEEE 802.3bz (2.5GBase-T) for significantly faster speeds than standard Gigabit Ethernet.
• PCIe x1 Interface: Easy installation into compatible PCIe slots.
• Multi-Speed Compatibility: Backward compatible with 10/100/1000Mbps Ethernet standards (IEEE 802.3, IEEE 802.3u).
• Wake-On-LAN (WoL): Supports remote activation via Wake-On-LAN and RealWoW! Technology.
• Jumbo Frame Support: Handles jumbo frames up to 16K bytes for improved data throughput.
• VLAN Support: Includes IEEE 802.1Q VLAN tagging and IEEE 802.1ad Dual VLAN.
• Low Power Ethernet: Compatible with IEEE 802.3az (Energy-Efficient Ethernet).
• Flow Control: Full Duplex Flow Control (IEEE 802.3x) for reliable data transmission.
• Includes Low Profile Bracket: Suitable for various PC case sizes.

Technical Specifications

• Chip Buffer: Transmit/Receive Chip Buffer Compatibility
• PCIe Standards: Supports PCIe (Message Signaled Output) and PCIe L1 Substate L1.1 and L1.2.
• PHY Support: Supports on/off, saving, and disabled PHY power states.
• ProxZzzy Standard: Supports ECMA-393 ProxZzzy standard for sleeper hosts.
• Latency Tolerance: Supports LTR (Latency Tolerance Reports).
• Activation Indication: Supports WPI (Activation Package Indication).
• Matching: Supports matching of 32 sets of 128 bytes.
• Time Synchronization: Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization.
• Credit-Based Modeling: Supports IEEE 802.1Qav credit-based modeling algorithm.
• Priority Encoding: Supports 2 IEEE 802.1P priority encoding.

System Requirements

• Operating Systems: Linux, macOS.
• PCIe Slot: An available PCIe enabled slot.

Package Contents

• 1 x Oikabio PCIe 2.5G Ethernet Card
• 1 x Low Profile Bracket
