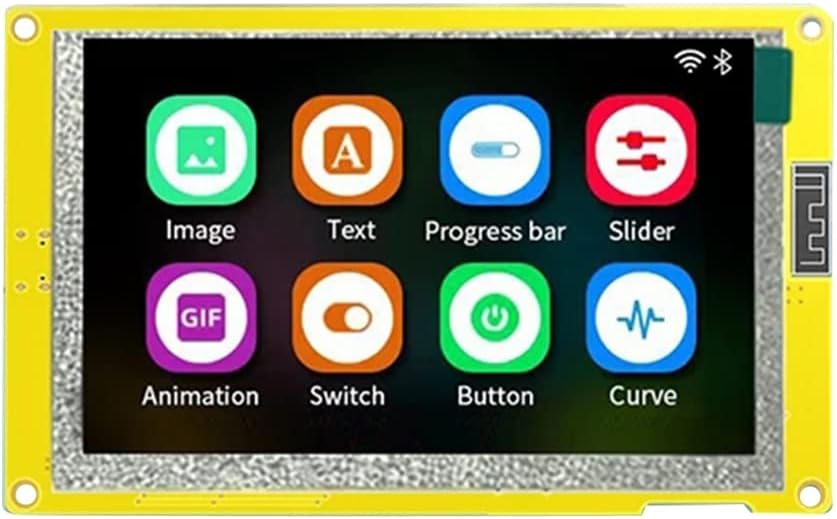

Oikabio ESP32-S3 5 Inch IPS 800x480 RGB LCD TFT HMI WiFi BT No Touch Module

Discover the Oikabio ESP32-S3 5 Inch IPS 800x480 RGB LCD TFT Display Module, a powerful HMI solution for your smart device and IoT projects. This module combines the versatile ESP32-S3 MCU with a vibrant 5-inch display, offering seamless integration with WiFi and Bluetooth for a wide range of applications. Please note, this version does not feature touch functionality.

Key Features

• Integrated ESP32-S3 MCU: Powerful processor for diverse applications.
• 5 Inch IPS RGB LCD TFT Display: Crisp 800x4480 resolution for clear visuals.
• 8MB PSRAM & 16MB Flash: Ample memory for complex projects and data storage.
• Wireless Connectivity: Built-in WiFi and Bluetooth for IoT integration.
• Human-Machine Interface (HMI) Ready: Ideal for control panels and smart displays.
• Non-Touch Display: Designed for applications where touch input is not required.
• Wide Operating Temperature: Reliable performance from -20℃ to 70℃.

Detailed Specifications

• Brand: Oikabio
• Model: ESP32-S3 5 Inch IPS RGB LCD TFT Display Module (No Touch)
• Display Size: 5 Inch
• Resolution: 800x480 pixels
• Display Type: IPS RGB LCD TFT
• MCU: ESP32-S3
• PSRAM: 8MB
• Flash Memory: 16MB
• Wireless Connectivity: WiFi, Bluetooth (BT)
• Antenna: Integrated PCB Antenna, 2dBi Gain
• WiFi Standards: 802.11b/g/n
• WiFi Transmission Power:
  • 802.11b: 17±2dBm (@11Mbps)
  • 802.11g: 14±2dBm (@54Mbps)
  • 802.11n: 13±2dBm (@MCS7)
• WiFi Reception Sensitivity:
  • 1Mbps: -90dBm
  • 11Mbps: -85dBm
  • 6Mbps (1/2BPSK): -88dBm
  • 54Mbps (3/4 64-QAM): -70dBm
  • MCS7 (65Mbps, 72.2Mbps): -67dBm
• Security: WPA/WPA2/WPA2-Enterprise/WPS
• Spectrum Range: 2400-2483.5MHz
• Default Serial Port Speed: 115200bps
• Image Output Format: JPEG (supports OV2640 only), BMP, GREY SCALE
• Packing Method: DIP-16
• Power Consumption (approx. @5V):
  • Turn off flash: 180mA
  • Turn on flash (max brightness): 310mA
  • Deep sleep: up to 6mA
  • Modem-sleep: up to 20mA
  • Light sleep: up to 6.7mA
• Working Temperature: -20℃ to 70℃
• Storage Environment: -40℃ to 125℃, less than 90% humidity
• Dimensions: 137mm x 84mm
• Color: Yellow
• Material: PCB + Metal

Potential Applications

• Smart home device image transmission
• Wireless monitoring systems
• Smart farming solutions
• Wireless QR recognition devices
• Wireless positioning signal applications
• General IoT device integration

Package Contents

• 1 x Oikabio ESP32-S3 5 Inch TFT LCD RGB Module
• 1 x USB Cable
