Ohamtes OC-60B Wired Door Magnetic Contact NC NO Sensor Roller Garage Alarm

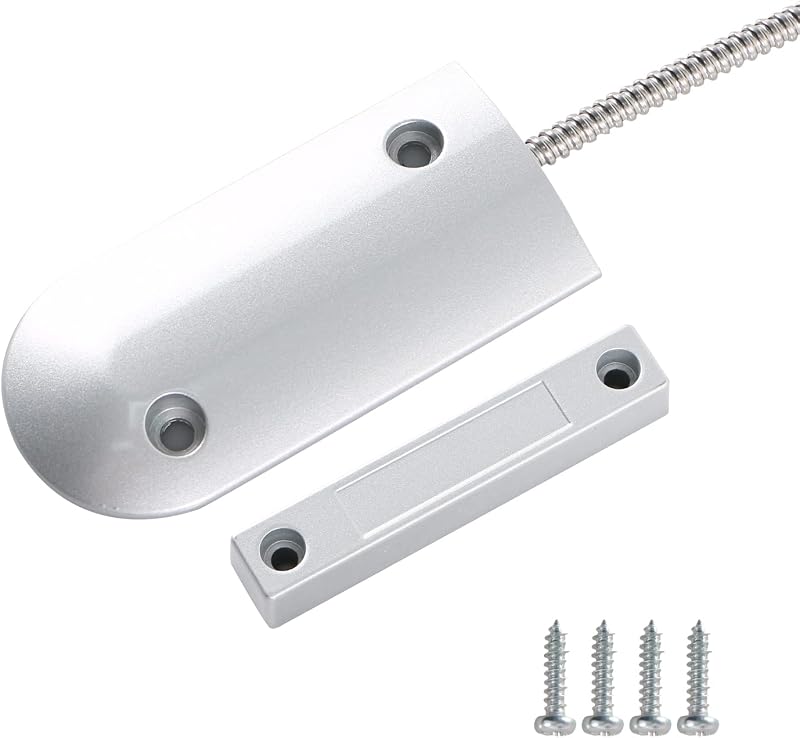

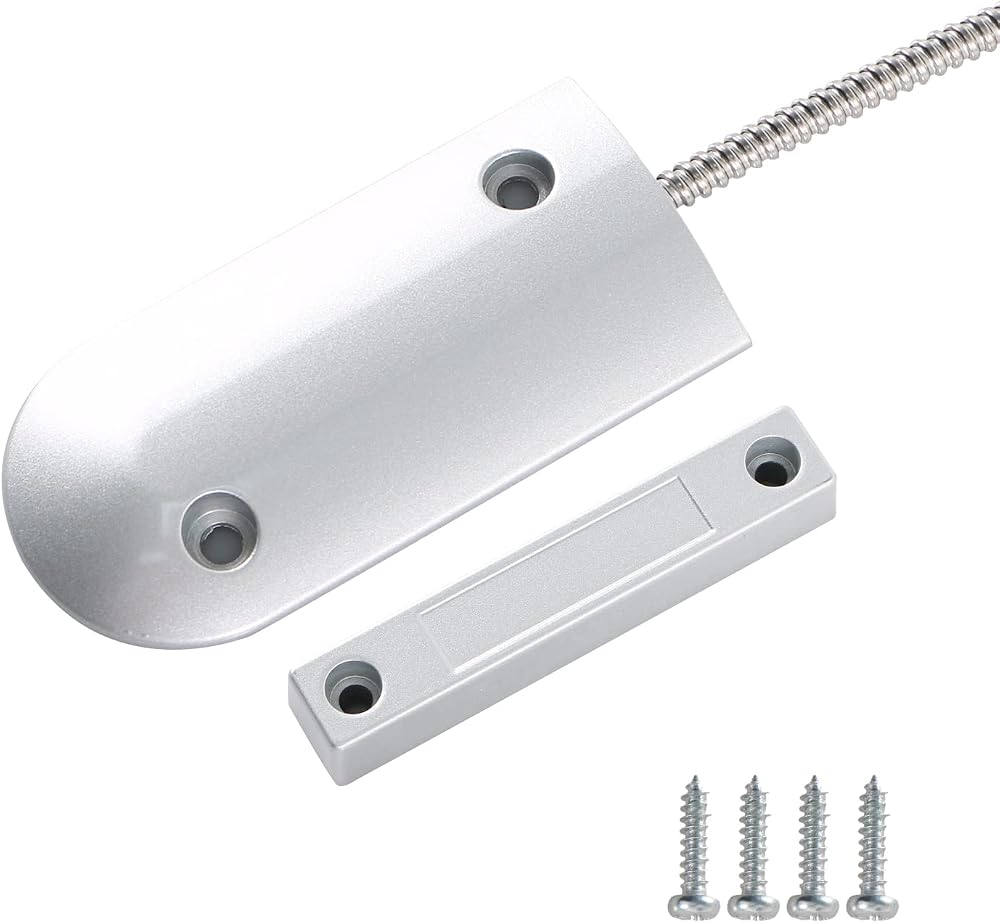

Ohamtes OC-60B Wired Door Magnetic Contact Sensor

This Ohamtes OC-60B Wired Door Magnetic Contact Sensor is designed for security applications on garage doors, rolling gates, and automatic doors. It features a versatile NC (Normally Closed) and NO (Normally Open) switch form, providing flexibility for various alarm system integrations.

Key Features

• Brand: Ohamtes
• Model: OC-60B
• Switch Form: Normally Open (NO) and Normally Closed (NC)
• Shell Material: Zinc alloy
• Color: Silvery
• Induction Distance: 50-70mm
• Lead Wire: 1007UL#22AWG 550mm
• Suitable for: Garage doors, rolling gates, automatic doors

Specifications

• Dimensions: 105mm x 50mm x 10mm (Length x Width x Height)
• Mounting Hole Diameter: 5.5mm
• Mounting Hole Spacing: 62mm
• Maximum Power: 10W
• Maximum Voltage: 100V
• Maximum Current: 0.5A
• Packing: 1 set per bag

Understanding Switch Forms

• NO (Normally Open): The circuit conducts when the magnets are separated and does not conduct when they are together.
• NC (Normally Closed): The circuit conducts when the magnets are together and does not conduct when they are separated.

Installation Notes

1. Prepare for installation based on your door sensor type (e.g., embedded holes, fixing points).
2. Install the door sensor in the closed position of the door, window, or drawer.
3. Mount the magnet component on the movable part and the switch component on the fixed part. Ensure they are aligned as closely as possible.
4. Position the door magnet away from strong magnetic field interference sources like transformers to prevent affecting performance or causing false signals.
