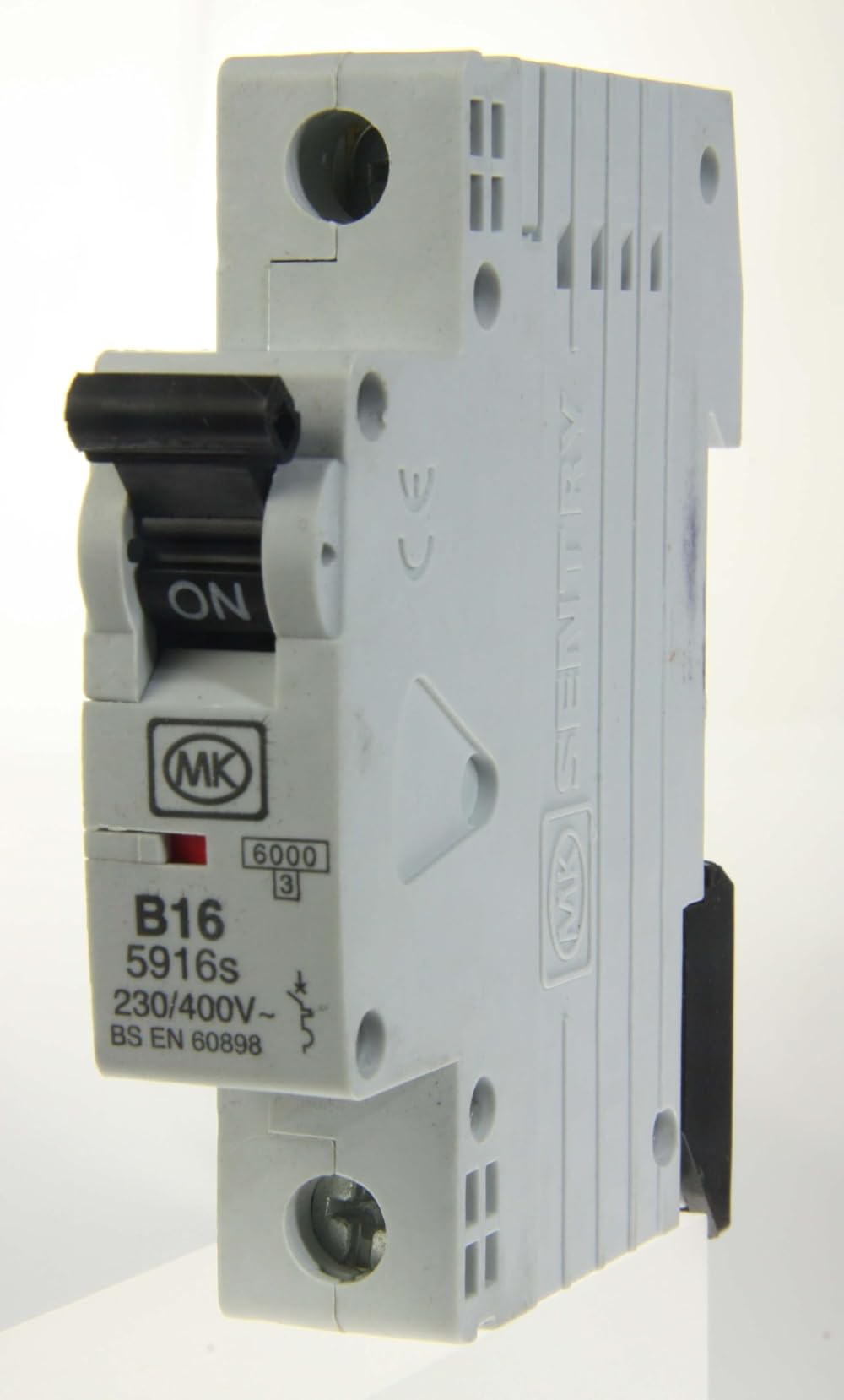

MK Electric Sentry 16A Type B Single Pole MCB Miniature Circuit Breaker 230V

MK Electric Sentry 16A Single Pole Type B MCB

This MK Electric Sentry miniature circuit breaker (MCB) is a 16A, single pole, 230V device with Type B operating characteristics. It is designed to protect electrical installations from overcurrents caused by overload and fault conditions.

Key Features

• Type: Miniature Circuit Breaker (MCB)
• Brand: MK Electric
• Series: Sentry
• Amperage Rating: 16A
• Poles: Single Pole
• Voltage Rating: 230V
• Type: Type B (magnetic operating limits 3-5 times current rating)
• Construction: Thermo-magnetic, current limiting
• Protection: Detects and interrupts overload and fault currents
• Operation: Thermal element (bi-metal), magnetic element
• Dolly Lock: Can be locked in On or Off position without affecting trip mechanism
• Contacts: Low electrical resistance, low weld propensity
• Contact Gap: 4 mm indicated by green indicator visibility
• Switching: Suitable for single pole isolating switch applications
• Terminals: Tunnel terminals, 35mm² capacity
• Terminal Protection: Shutter to prevent incorrect cable installation
• Terminal Screws: Touch proof (IP2X), captive, combination heads

Specifications

• Operating Characteristics: Type B
• Magnetic Trip Range: 3 to 5 times the rated current
• Terminal Capacity: 35mm²
• Ingress Protection (Terminals): IP2X
