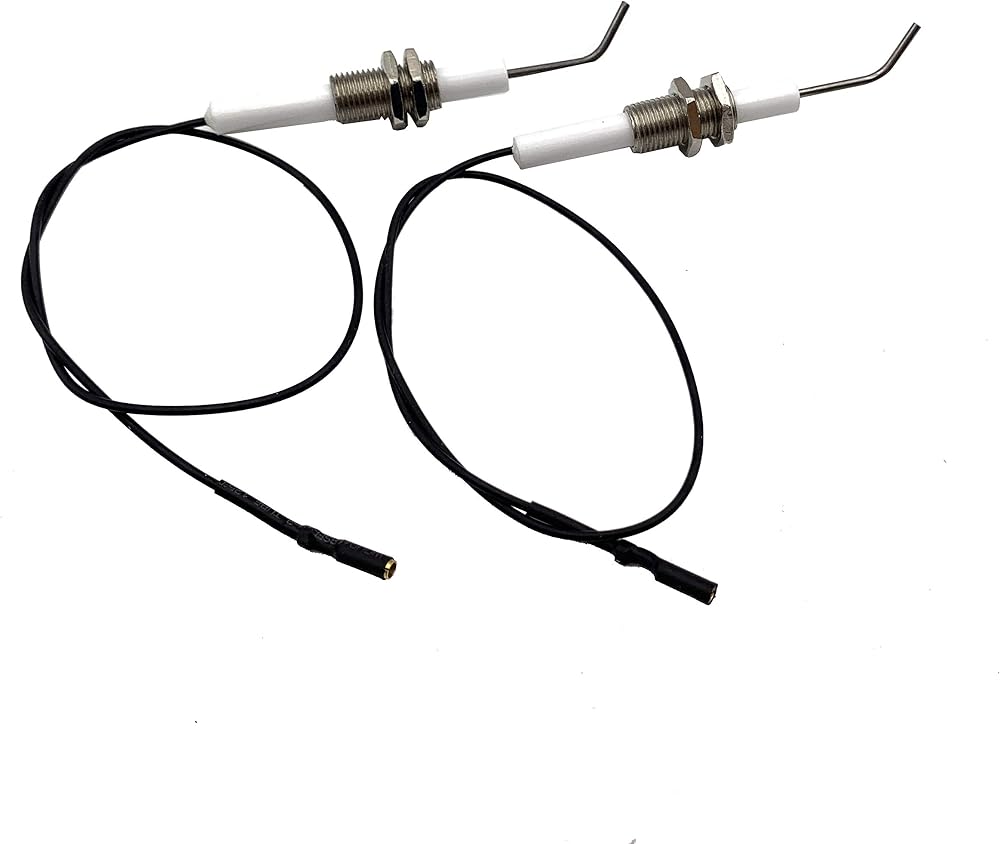

METER STAR 2pc Ceramic Electrode Ignition Spark Plug Wire 30cm for Piezo Igniter

METER STAR Universal Ceramic Electrode Ignition Spark Plug Wire Set

This set includes two universal ceramic electrode ignition spark plug wires from METER STAR, designed for use with push-button piezo igniters. Please verify the connection type and specifications before purchase.

Key Features

• Set of 2 ignition spark plug wires
• Brand: METER STAR
• Wire Length: 30cm (0.3 meters / approximately 11.8 inches)
• Electrode Type: Ceramic
• Electrode Size: M10*1, 51mm length
• Wire Temperature Resistance: Up to 200°C
• Ignition Needle Pin: Straight length 19.5mm, with a 135-degree head measuring 9.0mm
• Igniter Connection: Round terminal with 2.3mm insert. Suitable for pressing igniters.

Specifications

• Wire Length: 30cm
• Electrode Size: M10*1, 51mm length
• Pin Straight Length: 19.5mm
• Pin Head Angle: 135 degrees
• Pin Head Length: 9.0mm
• Max Temperature Resistance: 200°C
• Terminal Insert Size: 2.3mm

Installation Notes

If you encounter issues after installation, please ensure the wire connections are secure and normal. Adjusting the distance and position of the ignition needle relative to the burner may also resolve functional problems. The igniter connection terminal is round, designed for press-type igniters. If your current igniter has a square terminal, you may need to modify it to connect properly.
