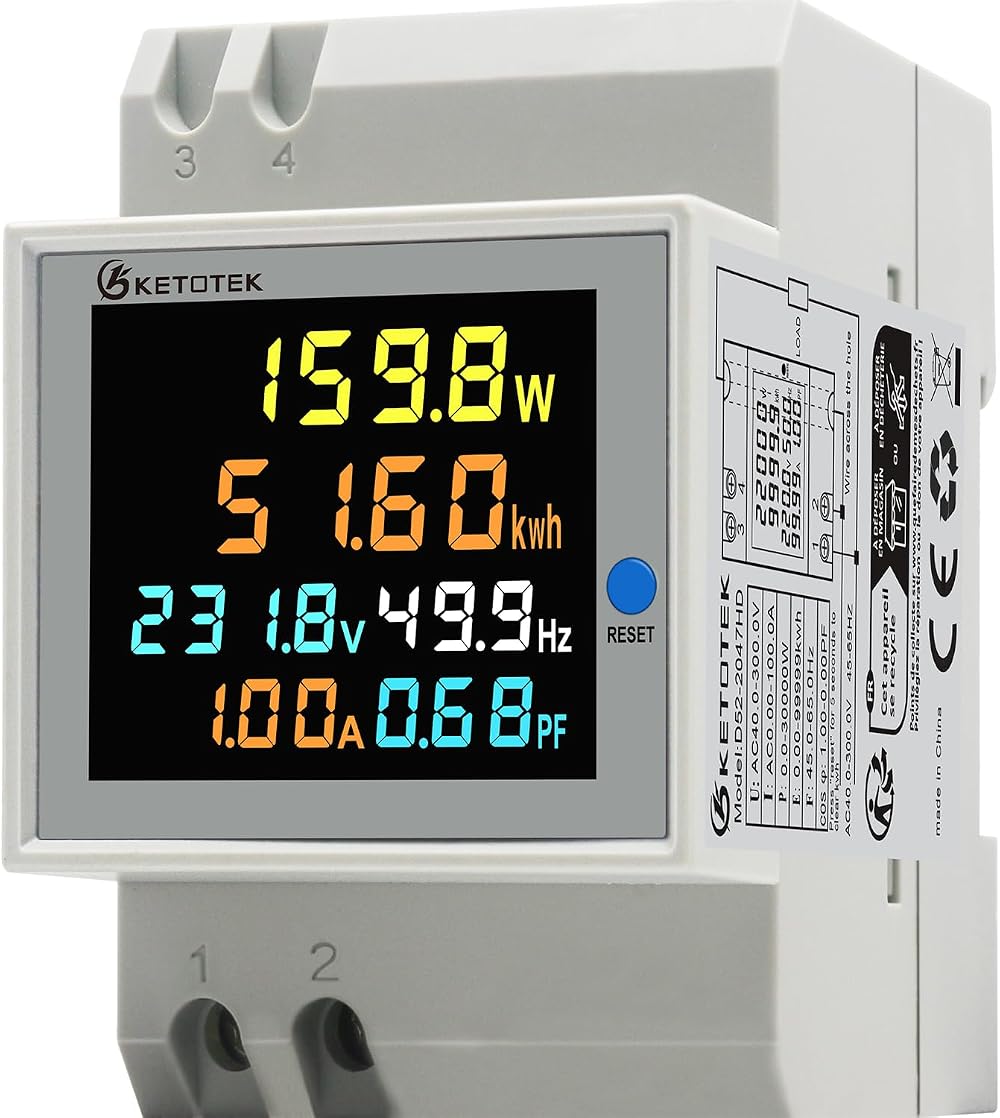

KETOTEK Energy Meter Single Phase AC40-300V 100A KWH Din Rail Meter

Key Features

• Brand: KETOTEK
• Type: Single phase energy meter
• Voltage range: AC 40.0–300.0 V
• Current range: AC 0–100.0 A
• Power range: 0–30000 W
• Energy display: 0–99999 kWh
• Frequency: 45.0–65.0 Hz
• Power factor: 0.00–1.00 PF
• Display: Color LCD with backlight, wide viewing angle
• Mounting: DIN rail compatible
• Data retention: Energy data retained when power is disconnected
• Protection: High quality ABS flame retardant housing

Product Description

The KETOTEK energy meter is a single-phase DIN rail meter designed for accurate measurement of electrical parameters. It provides a 6-in-1 display showing voltage, current, active power, energy, frequency, and power factor on a single interface. The meter supports accumulation of energy data even after power loss and resumes from the last value when power is restored. It is suitable for use in homes, schools, markets, laboratories, and general electrical installations, and can measure non-standard sine waves from inverters. For three-phase setups, connect only the live wire and neutral as indicated.

Construction features include a durable ABS housing with flame retardant properties and a high precision measurement system. The backlit color LCD ensures readability in all lighting conditions, including low light environments.
